ANSI /ASME B16.47 Series A Flange( MSS SP44)
ASME B16.47 SER.A Blind Flange Class 300
Standard: ASME B16.47 SER.A
Flange type: Blind Flange
Size range: 12
Pressure: Class 300
Material: Stainless steel,Alloy Steel,Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.
▲Standard: ASME B16.47 SER.A
▲Flange type: Blind flange
▲Size range: 12"-60"
▲Pressure: Class 300
▲Material:
1) Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31254/S31260/S32550/S32707
2) Carbon Steel Material:
ASTM A105, A350 LF2,P235GH,P250GH,SS400,Q235,C22.8,20#,16mn.
3) Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
ASTM A694 F42/F46/F52/F60/F65/F70/F80.
4) Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
5) Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
▲Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc, Hot dipped/ Electric galvanized.
▲Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.

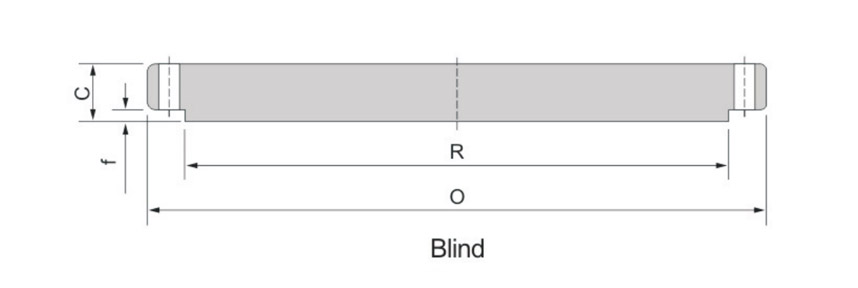

ASME B16.47 SER.A Blind Flange Class 300 Dimensions in mm.
Pipe Normal Diam. |
O.D.of Flange |
Thickness |
LengthThrough Hub |
Diam. of Hub at Bevel |
Raised Face Diam. |
Fillet Radius Min. |
Diam. of Bolt Circle |
No. of Bolt Holes |
Diam. of Bolt Holes |
Diam. of Bolt |
Approx.Weight (KG) |
O |
C |
Y |
A |
R |
r |
||||||
26" |
971.6 |
84.1 |
184.2 |
660.4 |
749.3 |
9.7 |
876.3 |
28 |
44.5 |
1 5/8 |
489.0 |
28" |
1035.1 |
90.4 |
196.9 |
711.2 |
800.1 |
11.2 |
939.8 |
28 |
44.5 |
1 5/8 |
596.5 |
30" |
1092.2 |
95.3 |
209.6 |
762.0 |
857.3 |
11.2 |
997.0 |
28 |
47.8 |
1 3/4 |
699.9 |
32" |
1149.4 |
100.1 |
222.3 |
812.8 |
914.4 |
11.2 |
1054.1 |
28 |
50.8 |
1 7/8 |
814.2 |
34" |
1206.5 |
104.6 |
231.6 |
863.6 |
965.2 |
12.7 |
1104.9 |
28 |
50.8 |
1 7/8 |
938.0 |
36" |
1270.0 |
111.3 |
241.3 |
914.4 |
1022.4 |
12.7 |
1168.4 |
32 |
53.8 |
2 |
1105.0 |
38" |
1168.4 |
108.0 |
180.8 |
965.2 |
1028.7 |
12.7 |
1092.2 |
32 |
41.1 |
1 1/2 |
907.7 |
40" |
1238.3 |
114.3 |
193.5 |
1016.0 |
1085.9 |
12.7 |
1155.7 |
32 |
44.5 |
1 5/8 |
1079.6 |
42" |
1289.1 |
119.1 |
200.2 |
1066.8 |
1136.7 |
12.7 |
1206.5 |
32 |
44.5 |
1 5/8 |
1219.3 |
44" |
1352.6 |
124.0 |
206.2 |
1117.6 |
1193.8 |
12.7 |
1263.7 |
32 |
47.8 |
1 3/4 |
1396.6 |
46" |
1416.1 |
128.5 |
215.9 |
1168.4 |
1244.6 |
12.7 |
1320.8 |
28 |
50.8 |
1 7/8 |
1587.1 |
48" |
1466.9 |
133.4 |
223.8 |
1219.2 |
1301.8 |
12.7 |
1371.6 |
32 |
50.8 |
1 7/8 |
1767.2 |
50" |
1530.4 |
139.7 |
231.6 |
1270.0 |
1358.9 |
12.7 |
1428.8 |
32 |
53.8 |
2 |
2014.9 |
52" |
1581.2 |
144.5 |
238.3 |
1320.8 |
1409.7 |
12.7 |
1479.6 |
32 |
53.8 |
2 |
2225.4 |
54" |
1657.4 |
152.4 |
252.5 |
1371.6 |
1466.9 |
12.7 |
1549.4 |
28 |
60.5 |
2 1/4 |
2578.3 |
56" |
1708.2 |
153.9 |
260.4 |
1422.4 |
1517.7 |
12.7 |
1600.2 |
28 |
60.5 |
2 1/4 |
2766.1 |
58" |
1759.0 |
158.8 |
266.7 |
1473.2 |
1574.8 |
12.7 |
1651.0 |
32 |
60.5 |
2 1/4 |
3025.1 |
60" |
1809.8 |
163.6 |
273.1 |
1524.0 |
1625.6 |
12.7 |
1701.8 |
32 |
60.5 |
2 1/4 |
3299.5 |
Notes:
Raised Face height(f)will be furnished with 1.6mm and,which is included in Thickness(C)and Length Through Hub (Y).
