ANSI /ASME B16.47 Series A Flange( MSS SP44)

ASME B16.47 SER.A Weld Neck Flange Class 150
ASME B16.47 SER.A Weld Neck Flange Class 150

ASME B16.47 SER.A Weld Neck Flange Class 150

Standard: ASME B16.47 SER.A

Flange type: Weld Neck Flange

Size range: 12

Pressure: Class 150

Material: Stainless steel,Alloy Steel,Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.

Send Inquiry
▲Standard: ASME B16.47 SER.A(MSS SP 44)
▲Flange type: Weld Neck Flange
▲Size range: 12"-60"
▲Pressure : Class 150
▲Material:
   1) Stainless Steel Material:
       ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
       Duplex stainless steel UNS  S32304,S31803,S32205.
       Super Duplex stainless steel UNS S32750/S32760/S31254/S31260/S32550/S32707
   2) Carbon Steel Material:
       ASTM A105, A350 LF2,P235GH,P250GH,SS400,Q235,C22.8,20#,16mn.
   3) Alloy Steel Material:
       ASTM A 182, GR F1,F5, F9, F11, F22,  F91
       ASTM A694 F42/F46/F52/F60/F65/F70/F80.
   4) Copper&Nickel Alloy Material:
       CU/NI 90/10, CU/NI 70/30
   5) Nickel Alloy Material:
        Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
▲Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc, Hot dipped/ Electric galvanized.
▲Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
This product Keywords:welding neck flanges ANSI B16.47 FLANGE MSS SP44 Flange

ASME B16.47 SER.A Weld Neck Flange Class 150                                                                                             Dimensions in mm

Pipe Normal Diam. O.D.of Flange Thickness

Length

Through Hub

Diam. at Base of Hub  Bore Diam. of Hub at Bevel Raised Face Diam. Fillet Radius Min. Diam. of Bolt Circle

No. of

Bolt

Holes

 Diam. of Bolt Holes Diam. of Bolt

Approx.

Weight

(KG)

Wall
Thickness

9.5mm 12.7mm

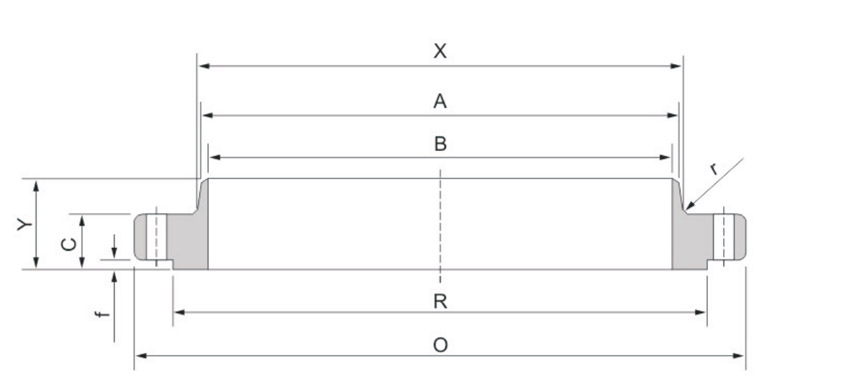

O C Y X B A R r
26" 870.0  68.3  120.7  676.1  641.4  635.0  660.4  749.3  9.7 806.5  24 35.1 1 1/4 136.1
28" 927.1  71.4  125.5  726.9  692.2  685.8  711.2  800.1  11.2 863.6  28 35.1 1 1/4 156.5
30" 984.3  74.7  136.7  781.1  743.0  736.6  762.0  857.3  11.2 914.4  28 35.1 1 1/4 181.4
32" 1060.5  81.0  144.5  831.9  793.8  787.4  812.8  914.4  11.2 977.9  28 41.1 1 1/2 229.1
34" 1111.3  82.6  149.4  882.7  844.6  838.2  863.6  965.2  12.7 1028.7  32 41.1 1 1/2 244.9
36" 1168.4  90.4  157.2  933.5  895.4  889.0  914.4  1022.4  12.7 1085.9  32 41.1 1 1/2 290.3
38" 1238.3  87.4  157.2  990.6  946.2  939.8  965.2  1073.2  12.7 1149.4  32 41.1 1 1/2 326.6
40" 1289.1  90.4  163.6  1041.4  997.0  990.6  1016.0  1124.0  12.7 1200.2  36 41.1 1 1/2 351.5
42" 1346.2  96.8  171.5  1092.2  1047.8  1041.4  1066.8  1193.8  12.7 1257.3  36 41.1 1 1/2 403.7
44" 1403.4  101.6  177.8  1143.0  1098.6  1092.2  1117.6  1244.6  12.7 1314.5  40 41.1 1 1/2 449.1
46" 1454.2  103.1  185.7  1196.8  1149.4  1143.0  1168.4  1295.4  12.7 1365.3  40 41.1 1 1/2 480.8
48" 1511.3  108.0  192.0  1247.6  1200.2  1193.8  1219.2  1358.9  12.7 1422.4  44 41.1 1 1/2 537.5
50" 1568.5  111.3  203.2  1301.8  1251.0  1244.6  1270.0  1409.7  12.7 1479.6  44 47.8 1 3/4 576.1
52" 1625.6  115.8  209.6  1352.6  1301.8  1295.4  1320.8  1460.5  12.7 1536.7  44 47.8 1 3/4 639.6
54" 1682.8  120.7  215.9  1403.4  1352.6  1346.2  1371.6  1511.3  12.7 1593.9  44 47.8 1 3/4 719.0
56" 1746.3  124.0  228.6  1457.5  1403.4  1397.0  1422.4  1574.8  12.7 1651.0  48 47.8 1 3/4 798.3
58" 1803.4  128.5  235.0  1508.3  1454.2  1477.8  1473.2  1625.6  12.7 1708.2  48 47.8 1 3/4 868.6
60" 1854.2  131.8  239.8  1559.1  1505.0  1498.6  1524.0  1676.4  12.7 1759.0  52 47.8 1 3/4 927.6

Notes:

Raised Face height(f)will be furnished with 1.6mm and,which is included in Thickness(C)and Length Through Hub (Y).
