ANSI /ASME B16.47 Series A Flange( MSS SP44)
ASME B16.47 SER.A Weld Neck Flange Class 300
Standard: ASME B16.47 SER.A
Flange type: Weld Neck Flange
Size range: 12
Pressure: Class 300
Material: Stainless steel,Alloy Steel,Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.
▲Standard: ASME B16.47 SER.A(MSS SP 44)
▲Flange type: Weld Neck Flange
▲Size range: 12"-60"
▲Pressure : Class 300
▲Material:
1) Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31254/S31260/S32550/S32707
2) Carbon Steel Material:
ASTM A105, A350 LF2,P235GH,P250GH,SS400,Q235,C22.8,20#,16mn.
3) Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
ASTM A694 F42/F46/F52/F60/F65/F70/F80.
4) Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
5) Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
▲Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc, Hot dipped/ Electric galvanized.
▲Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
This product Keywords:carbon flanges orifice plate flange blank flange

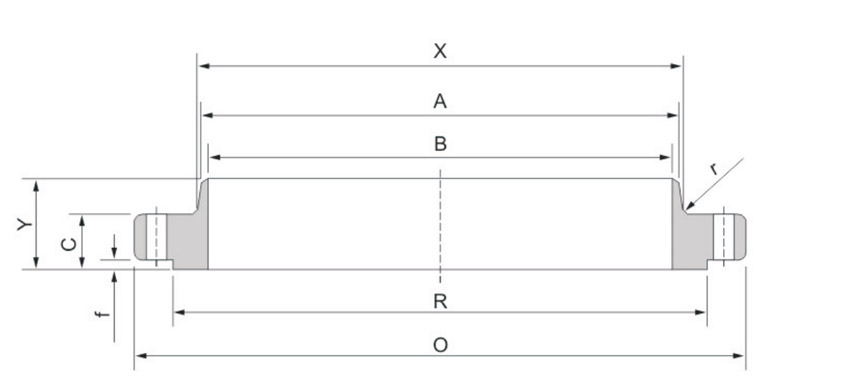

ASME B16.47 SER.A Weld Neck Flange Class 300 Dimensions in mm.
|
Pipe Normal Diam. |
O.D.of Flange |
Thickness |
Length Through Hub |
Diam. at Base of Hub |
Bore |
Diam. of Hub at Bevel |
Raised Face Diam. |
Fillet Radius Min. |
Diam. of Bolt Circle |
No. of Bolt Holes |
Diam. of Bolt Holes |
Diam. of Bolt |
Approx. Weight (KG) |
|
|
Wall Thickness |
||||||||||||||
|
9.5mm |
12.7mm |
|||||||||||||
|
O |
C |
Y |
X |
B |
A |
R |
r |
|||||||
|
26" |
971.6 |
79.2 |
184.2 |
720.9 |
641.4 |
635.0 |
660.4 |
749.3 |
9.7 |
876.3 |
28 |
44.5 |
1 5/8 |
274.4 |
|
28" |
1035.1 |
85.9 |
196.9 |
774.7 |
692.2 |
685.8 |
711.2 |
800.1 |
11.2 |
939.8 |
28 |
44.5 |
1 5/8 |
337.9 |
|
30" |
1092.2 |
91.9 |
209.6 |
827.0 |
743.0 |
736.6 |
762.0 |
857.3 |
11.2 |
997.0 |
28 |
47.8 |
1 3/4 |
394.6 |
|
32" |
1149.4 |
98.6 |
222.3 |
881.1 |
793.8 |
787.4 |
812.8 |
914.4 |
11.2 |
1054.1 |
28 |
50.8 |
1 7/8 |
455.9 |
|
34" |
1206.5 |
101.6 |
231.6 |
936.8 |
844.6 |
838.2 |
863.6 |
965.2 |
12.7 |
1104.9 |
28 |
50.8 |
1 7/8 |
519.4 |
|
36" |
1270.0 |
104.6 |
241.3 |
990.6 |
895.4 |
889.0 |
914.4 |
1022.4 |
12.7 |
1168.4 |
32 |
53.8 |
2 |
578.3 |
|
38" |
1168.4 |
108.0 |
180.8 |
993.6 |
946.2 |
939.8 |
965.2 |
1028.7 |
12.7 |
1092.2 |
32 |
41.1 |
1 1/2 |
315.3 |
|
40" |
1238.3 |
114.3 |
193.5 |
1047.8 |
997.0 |
990.6 |
1016.0 |
1085.9 |
12.7 |
1155.7 |
32 |
44.5 |
1 5/8 |
381.0 |
|
42" |
1289.1 |
119.1 |
200.2 |
1098.6 |
1047.8 |
1041.4 |
1066.8 |
1136.7 |
12.7 |
1206.5 |
32 |
44.5 |
1 5/8 |
430.9 |
|
44" |
1352.6 |
124.0 |
206.2 |
1149.4 |
1098.6 |
1092.2 |
1117.6 |
1193.8 |
12.7 |
1263.7 |
32 |
47.8 |
1 3/4 |
478.5 |
|
46" |
1416.1 |
128.5 |
215.9 |
1203.5 |
1149.4 |
1143.0 |
1168.4 |
1244.6 |
12.7 |
1320.8 |
28 |
50.8 |
1 7/8 |
560.2 |
|
48" |
1466.9 |
133.4 |
223.8 |
1254.3 |
1200.2 |
1193.8 |
1219.2 |
1301.8 |
12.7 |
1371.6 |
32 |
50.8 |
1 7/8 |
626.0 |
|
50" |
1530.4 |
139.7 |
231.6 |
1305.1 |
1251.0 |
1244.6 |
1270.0 |
1358.9 |
12.7 |
1428.8 |
32 |
53.8 |
2 |
694.0 |
|
52" |
1581.2 |
144.5 |
238.3 |
1355.9 |
1301.8 |
1295.4 |
1320.8 |
1409.7 |
12.7 |
1479.6 |
32 |
53.8 |
2 |
753.0 |
|
54" |
1657.4 |
152.4 |
252.5 |
1409.7 |
1352.6 |
1346.2 |
1371.6 |
1466.9 |
12.7 |
1549.4 |
28 |
60.5 |
2 1/4 |
929.9 |
|
56" |
1708.2 |
153.9 |
260.4 |
1463.5 |
1403.4 |
1397.0 |
1422.4 |
1517.7 |
12.7 |
1600.2 |
28 |
60.5 |
2 1/4 |
977.5 |
|
58" |
1759.0 |
158.8 |
266.7 |
1514.3 |
1454.2 |
1477.8 |
1473.2 |
1574.8 |
12.7 |
1651.0 |
32 |
60.5 |
2 1/4 |
1029.7 |
|
60" |
1809.8 |
163.6 |
273.1 |
1565.1 |
1505.0 |
1498.6 |
1524.0 |
1625.6 |
12.7 |
1701.8 |
32 |
60.5 |
2 1/4 |
1120.4 |
Notes:
Raised Face height(f)will be furnished with 1.6mm and,which is included in Thickness(C)and Length Through Hub (Y).
