ANSI/ASME B16.47 Series B Flange( API 605)
ASME B16.47 SER.B blind Flange Class 900
Standard: ASME B16.47 SER.B
Flange type: Blind Flange
Size range: 26
Pressure: Class 900
Material: Stainless steel,Alloy Steel,Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.
▲Standard: ASME B16.47 SER.B
▲Flange type: Blind Flange
▲Size range: 26"-60"
▲Pressure : Class 900
▲Material:
1) Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex Stainless Steel UNS S32304,S31803,S32205.
Super Duplex Stainless Steel UNS S32750/S32760/S31254/S31260/S32550/S32707
2) Carbon Steel Material:
ASTM A105, A350 LF2,P235GH,P250GH,SS400,Q235,C22.8,20#,16mn.
3) Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
ASTM A694 F42/F46/F52/F60/F65/F70/F80.
4) Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
5) Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
▲Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc, Hot dipped/ Electric galvanized.
▲Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.

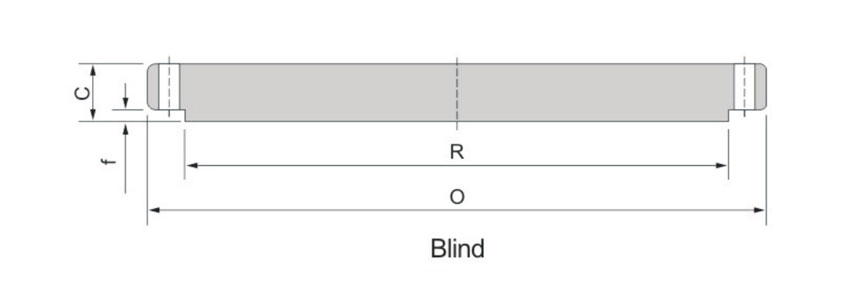

ASME B16.47 SER.B Blind Flange Class 900 Dimensions in mm.
| Pipe Normal Diam. | O.D.of Flange | Thickness | Length Through Hub | Diam. of Hub at Bevel | Raised Face Diam. | Fillet Radius Min. | Diam. of Bolt Circle |
No. of Bolt Holes |
Diam. of Bolt Holes | Diam. of Bolt |
Approx. Weight (KG) |
| O | C | Y | A | R | r | ||||||
| 26" | 1022.4 | 153.9 | 258.8 | 660.4 | 762.0 | 11.2 | 901.7 | 20 | 66.5 | 2 1/2 | 990.7 |
| 28" | 1104.9 | 166.6 | 276.4 | 711.2 | 819.2 | 12.7 | 971.6 | 20 | 73.2 | 2 3/4 | 1252.8 |
| 30" | 1181.1 | 176.0 | 289.1 | 762.0 | 876.3 | 12.7 | 1035.1 | 20 | 79.2 | 3 | 1512.3 |
| 32" | 1238.3 | 185.7 | 303.3 | 812.8 | 927.1 | 12.7 | 1092.2 | 20 | 79.2 | 3 | 1753.2 |
| 34" | 1314.5 | 195.1 | 319.0 | 863.6 | 990.6 | 14.2 | 1155.7 | 20 | 85.9 | 3 1/4 | 2075.7 |
| 36" | 1346.2 | 201.7 | 325.4 | 914.4 | 1028.7 | 14.2 | 1200.2 | 24 | 79.2 | 3 | 2251.2 |
| 38" | 1460.5 | 215.9 | 352.6 | 965.2 | 1098.6 | 19.1 | 1289.1 | 20 | 91.9 | 3 1/2 | 2836.4 |
| 40" | 1511.3 | 223.8 | 363.5 | 1016.0 | 1162.1 | 20.6 | 1339.9 | 24 | 91.9 | 3 1/2 | 3148.0 |
| 42" | 1562.1 | 231.6 | 371.3 | 1066.8 | 1212.9 | 20.6 | 1390.7 | 24 | 91.9 | 3 1/2 | 3481.4 |
| 44" | 1648.0 | 242.8 | 390.7 | 1117.6 | 1270.0 | 22.4 | 1463.5 | 24 | 98.6 | 3 3/4 | 4061.5 |
| 46" | 1733.6 | 255.5 | 411.0 | 1168.4 | 1333.5 | 22.4 | 1536.7 | 24 | 104.6 | 4 | 4729.2 |
| 48" | 1784.4 | 263.7 | 419.1 | 1219.2 | 1384.3 | 23.9 | 1587.5 | 24 | 104.6 | 4 | 5170.1 |
Notes:
Raised Face height(f)will be furnished with 6.4mm and,which is included in Thickness(C)and Length Through Hub (Y).
