ANSI/ASME B16.5 Lap Joint Flange

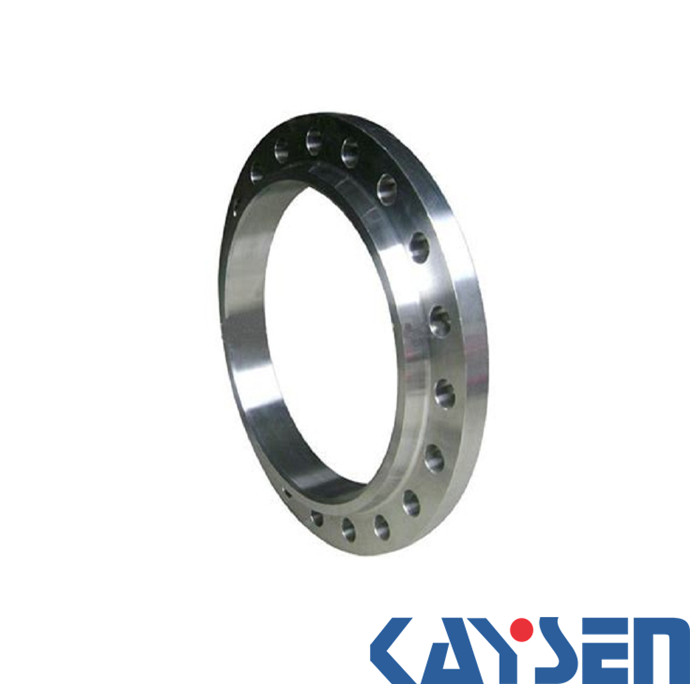

ASME/ANSI B16.5 Lap Joint Flange Class 2500
Standard: ASME B16.5
Flange type: Lap Joint Flange
Size range: 1/2''-1 1/4''
Pressure: Class2500
Material: Stainless steel , Alloy Steel , Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.
▲Standard: ASME/ANSI B16.5
▲Flange type: Lap Joint Flange
▲Size range: 1/2"-12"
▲Pressure class: Class 2500
▲Material:
1)Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31254/S31260/S32550/S32707
2)Carbon Steel Material:
ASTM A105, A350 LF2,P235GH,P250GH,SS400,Q235,C22.8,20#,16mn.
3)Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91,ASTM A694 F42/F46/F52/F60/F65/F70/F80.
4)Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
5)Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incoloy 800, 825, Hastelloy C22,C276
▲Surface treatment:Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc, Hot dipped/ Electric galvanized.
▲Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
ASME/ANSI B16.5 Lap Joint Flange CL2500
Standard:ASME B16.5
Flange type: Lap Joint Flange
Size range: 1/2''-1 1/4''
Pressure: Class2500
Material: Stainless steel , Alloy Steel , Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.
| ASME B16.5 Loose Flange Lap Joint Flange Class 2500 LBS Dimensions | ||||||||
| NPS | A | B | I | Holes | C | D | F | Weight |
| 1/2″ | 133.4 | 22.9 | 22.4 | 4 | 30.2 | 39.6 | 42.9 | 2.92 |
| 3/4″ | 139.7 | 28.2 | 22.4 | 4 | 31.75 | 42.9 | 50.8 | 3.39 |
| 1″ | 158.8 | 35.1 | 25.4 | 4 | 35.1 | 47.8 | 57.15 | 4.79 |
| 1-1/4″ | 184.2 | 43.7 | 28.4 | 4 | 38.1 | 52.3 | 73.15 | 7.06 |
