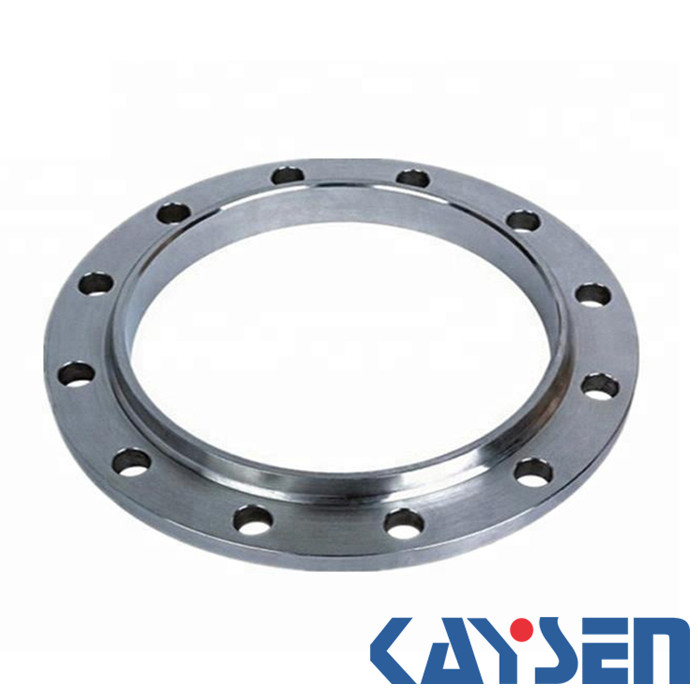

ANSI/ASME B16.5 Lap Joint Flange
.jpg)
.jpg)
ASME/ANSI B16.5 Lap Joint Flange Class 300
Standard: ASME B16.5
Flange type: Lap Joint Flange
Size range: 1/2''-24''
Pressure: Class300
Material: Stainless steel , Alloy Steel , Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.
▲Standard: ASME/ANSI B16.5
▲Flange type: Lap Joint Flange
▲Size range: 1/2"-24"
▲Pressure class: Class 300
▲Material:
1)Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31254/S31260/S32550/S32707
2)Carbon Steel Material:
ASTM A105, A350 LF2,P235GH,P250GH,SS400,Q235,C22.8,20#,16mn.
3)Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91,ASTM A694 F42/F46/F52/F60/F65/F70/F80.
4)Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
5)Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incoloy 800, 825, Hastelloy C22,C276
▲Surface treatment:Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc, Hot dipped/ Electric galvanized.
▲Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
ASME/ANSI B16.5 Lap Joint Flange class300

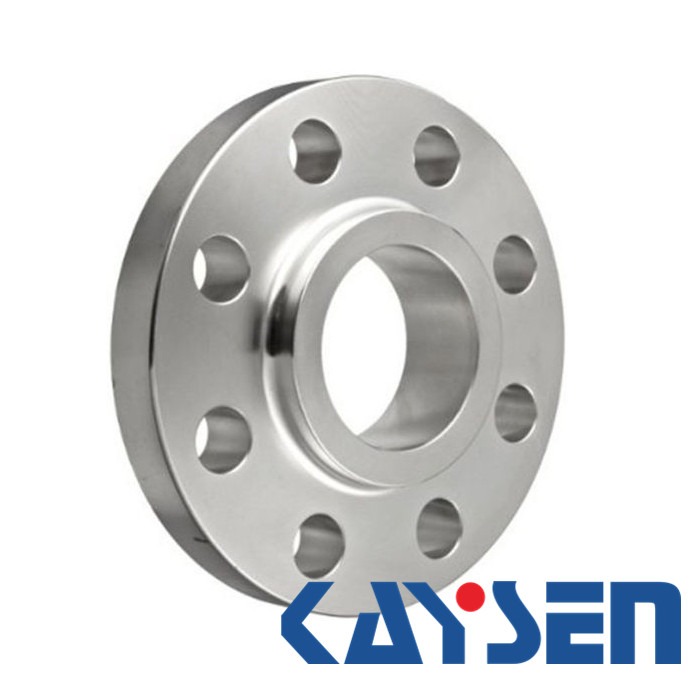

ANSI B16.5 lap joint Flange Class 300
Standard:ASME B16.5
Flange type: Lap Joint Flange
Size range: 1/2"-24"
Pressure: Class300
Material: Stainless steel , Alloy Steel , Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.
| ASME B16.5 Loose Flange Lap Joint Flange Class 300 LBS Dimensions | ||||||||
| NPS | A | B | I | Holes | C | D | F | Weight |
| 1/2″ | 95 | 22.9 | 15.7 | 4 | 14.2 | 22.4 | 38.1 | 0.7 |
| 3/4″ | 117 | 28.2 | 19.1 | 4 | 15.7 | 25.4 | 47.8 | 1.2 |
| 1″ | 124 | 35.1 | 19.1 | 4 | 17.5 | 26.9 | 53.8 | 1.46 |
| 1-1/4″ | 133 | 43.7 | 19.1 | 4 | 19.1 | 26.9 | 63.5 | 1.79 |
| 1-1/2″ | 155 | 50 | 22.4 | 4 | 20.6 | 30.2 | 69.9 | 2.62 |
| 2″ | 165 | 62.5 | 19.1 | 8 | 22.1 | 33.3 | 84.1 | 3 |
| 2-1/2″ | 191 | 75.4 | 22.4 | 8 | 25.4 | 38.1 | 100.1 | 4.53 |
| 3″ | 210 | 91.4 | 22.4 | 8 | 28.4 | 42.9 | 117.3 | 6.04 |
| 3-1/2″ | 229 | 104.1 | 22.4 | 8 | 30.2 | 44.5 | 133.4 | 7.61 |
| 4″ | 254 | 116.8 | 22.4 | 8 | 31.8 | 47.8 | 146.1 | 9.95 |
| 5″ | 279 | 144.5 | 22.4 | 8 | 35.1 | 50.8 | 177.8 | 12.5 |
| 6″ | 318 | 171.5 | 22.4 | 12 | 36.6 | 52.3 | 206.2 | 16.09 |
| 8″ | 381 | 222.3 | 25.4 | 12 | 41.1 | 62 | 260.4 | 24.67 |
| 10″ | 445 | 277.4 | 28.4 | 16 | 47.8 | 95.3 | 320.5 | 39.42 |
| 12″ | 521 | 328.2 | 31.8 | 16 | 50.8 | 101.6 | 374.7 | 56.45 |
| 14″ | 584 | 360.2 | 31.8 | 20 | 53.8 | 111.3 | 425.5 | 81.57 |
| 16″ | 648 | 411.2 | 35.1 | 20 | 57.2 | 120.7 | 482.6 | 104.75 |
| 18″ | 711 | 462.3 | 35.1 | 24 | 60.5 | 130 | 533.4 | 128.15 |
| 20″ | 775 | 514.4 | 35.1 | 24 | 63.5 | 139.7 | 587.2 | 157.65 |
| 24″ | 914 | 616 | 41.1 | 24 | 69.9 | 152.4 | 701.5 | 236.32 |
