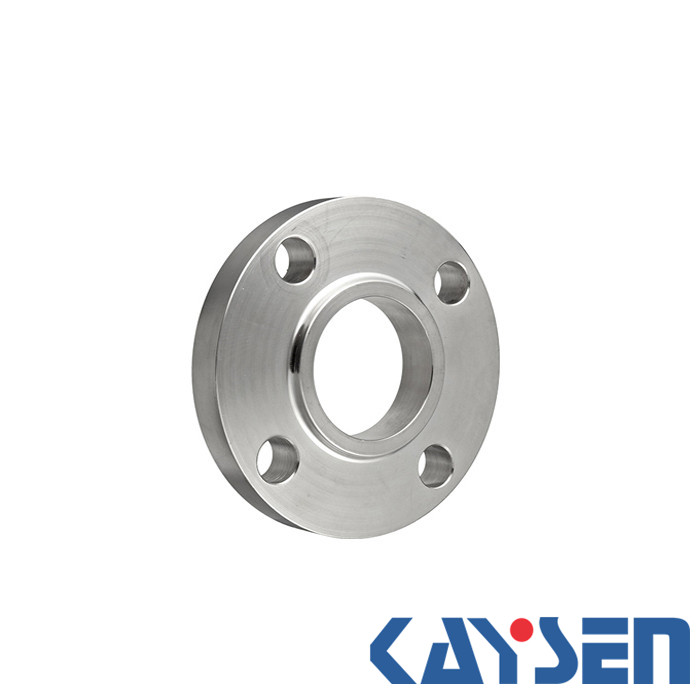

ANSI/ASME B16.5 Lap Joint Flange
ASME/ANSI B16.5 Lap Joint Flange Class 900
Standard: ASME B16.5
Flange type: Lap Joint Flange
Size range: 1/2
Pressure: Class900
Material: Stainless steel , Alloy Steel , Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.
▲Standard: ASME/ANSI B16.5
▲Flange type: Lap Joint Flange
▲Size range: 1/2"-24"
▲Pressure class: Class 900
▲Material:
1)Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31254/S31260/S32550/S32707
2)Carbon Steel Material:
ASTM A105, A350 LF2,P235GH,P250GH,SS400,Q235,C22.8,20#,16mn.
3)Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91,ASTM A694 F42/F46/F52/F60/F65/F70/F80.
4)Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
5)Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incoloy 800, 825, Hastelloy C22,C276
▲Surface treatment:Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc, Hot dipped/ Electric galvanized.
▲Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
ASME/ANSI B16.5 Lap Joint Flange CL900
Standard:ASME B16.5
Flange type: Lap Joint Flange
Size range: 1/2"-24"
Pressure: Class900
Material: Stainless steel , Alloy Steel , Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.

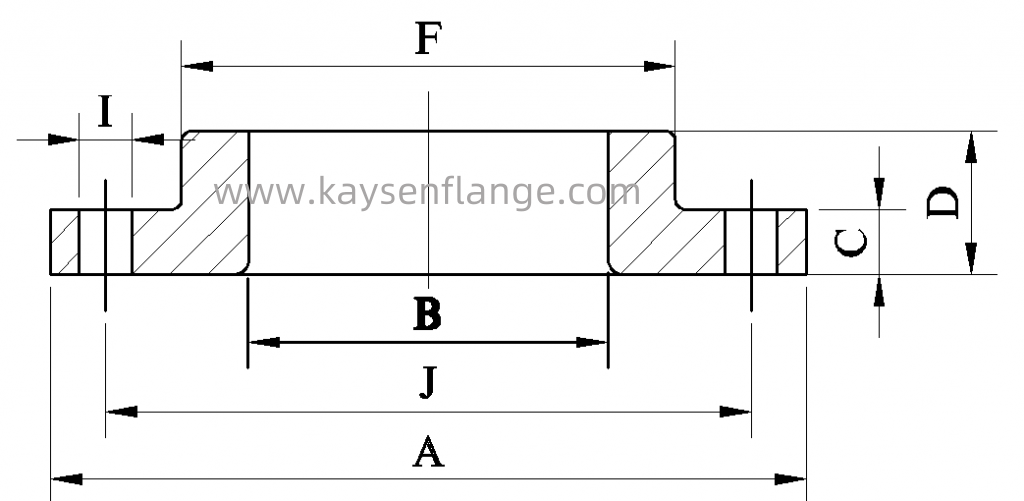

| ASME B16.5 Loose Flange Lap Joint Flange Class 900 LBS Dimensions | ||||||||
| NPS | A | B | I | Holes | C | D | F | Weight |
| 1/2″ | 120.6 | 22.9 | 22.3 | 4 | 22.3 | 31.7 | 38.1 | 1.71 |
| 3/4″ | 130 | 28.2 | 22.3 | 4 | 25.4 | 35 | 44.4 | 2.28 |
| 1″ | 149.3 | 35.1 | 25.4 | 4 | 28.4 | 41.1 | 52.3 | 3.35 |
| 1-1/4″ | 158.7 | 43.7 | 25.4 | 4 | 28.4 | 41.1 | 63.5 | 3.79 |
| 1-1/2″ | 177.8 | 50 | 28.4 | 4 | 31.7 | 44.4 | 69.85 | 5.25 |
| 2″ | 215.9 | 62.5 | 25.4 | 8 | 38.1 | 57.15 | 104.6 | 9.65 |
| 2-1/2″ | 244.3 | 75.4 | 28.4 | 8 | 41.1 | 63.5 | 123.9 | 13.38 |
| 3″ | 241.3 | 91.4 | 25.4 | 8 | 38.1 | 53.8 | 127 | 11.26 |
| 4″ | 292.1 | 116.8 | 31.7 | 8 | 44.4 | 69.85 | 158.7 | 19.23 |
| 5″ | 349.2 | 144.5 | 35 | 8 | 50.8 | 79.25 | 190.5 | 31.29 |
| 6″ | 381 | 171.5 | 31.7 | 12 | 55.6 | 85.8 | 234.9 | 40.34 |
| 8″ | 469.9 | 222.3 | 38.1 | 12 | 63.5 | 114.3 | 298.4 | 72.69 |
| 10″ | 546.1 | 277.4 | 38.1 | 16 | 69.85 | 127 | 368.3 | 105.97 |
| 12″ | 609.6 | 328.2 | 38.1 | 20 | 79.25 | 142.7 | 419.1 | 141.33 |
| 14″ | 641.3 | 360.2 | 41.1 | 20 | 85.8 | 155.4 | 450.8 | 162.58 |
| 16″ | 704.8 | 411.2 | 44.4 | 20 | 88.9 | 165.1 | 508 | 199.78 |
| 18″ | 787.4 | 462.3 | 50.8 | 20 | 101.6 | 190.5 | 565.1 | 280.05 |
| 20″ | 857.2 | 514.4 | 53.8 | 20 | 107.9 | 209.5 | 622.3 | 351.11 |
| 24″ | 1041.4 | 616 | 66.55 | 20 | 139.7 | 266.7 | 749.3 | 673.48 |
