ANSI/ASME B16.5 Plate Flange
ASME B16.5 Plate/Flat Flange Class 150
Standard: ASME B16.5
Flange type: Plate/Flat Flange
Size range: 1/2''-24''
Pressure: Class 150
Material: Stainless steel , Alloy Steel , Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.
▲Standard: ASME B16.5
▲Flange type: Plate/Flat Flange
▲Size range: 1/2"-24"
▲Pressure class: Class 150
▲Material:
1) Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31254/S31260/S32550/S32707
2) Carbon Steel Material:
ASTM A105, A350 LF2,P235GH,P250GH,SS400,Q235,C22.8,20#,16mn.
3) Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91,ASTM A694 F42/F46/F52/F60/F65/F70/F80.
4) Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
5) Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incoloy 800, 825, Hastelloy C22,C276
▲Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc, Hot dipped/ Electric galvanized.
▲Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard:ASME B16.5 Plate/Flat Flange
Type:Plate/Flat Flange
Pressure:Class 150
Size:1/2''-24''
Raw Material:Stainless steel,Alloy Steel , Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.
Process:Forged

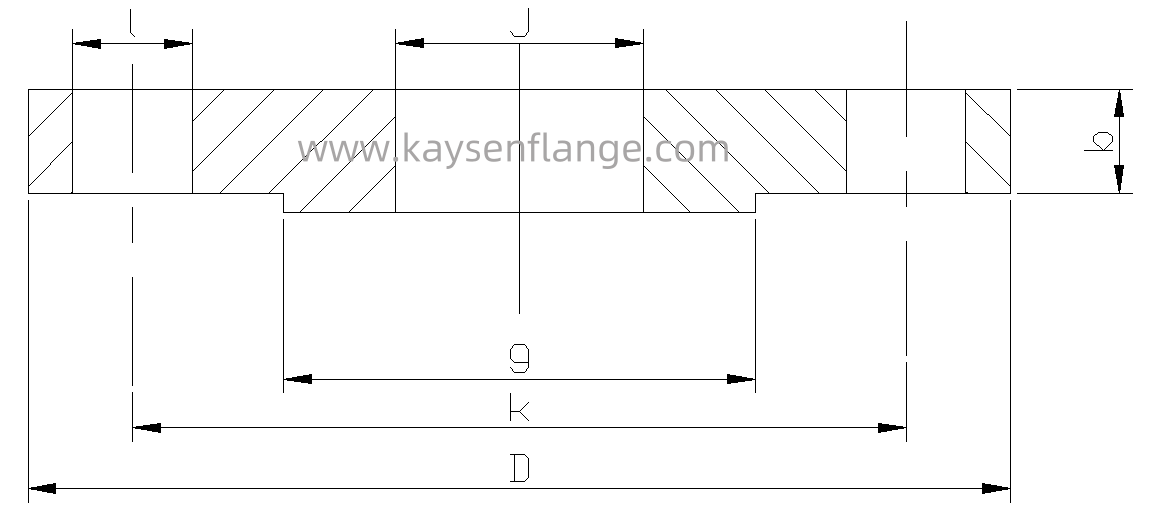

| Table ANSI, ASME, ASA, B16.5 150lb/sq.in. Plate Ring Flange RF | |||||||||
| ø | D | b | g | m | J | k | Holes | l | Kg. |
| 1/2" | 88,9 | 11,1 | 34,9 | 30,2 | 22,3 | 60,3 | 4 | 15,9 | 0,400 |
| 3/4" | 98,4 | 12,7 | 42,9 | 38,1 | 27,7 | 69,8 | 4 | 15,9 | 0,700 |
| 1" | 107,9 | 14,3 | 50,8 | 49,2 | 34,5 | 79,4 | 4 | 15,9 | 0,800 |
| 1 1/4" | 117,5 | 15,9 | 63,5 | 58,8 | 43,2 | 88,9 | 4 | 15,9 | 1,100 |
| 1 1/2" | 127,0 | 17,5 | 73,0 | 65,1 | 49,5 | 98,4 | 4 | 15,9 | 1,400 |
| 2" | 152,4 | 19,0 | 92,1 | 77,8 | 62,0 | 120,6 | 4 | 19,0 | 2,200 |
| 2 1/2" | 177,8 | 22,2 | 104,8 | 90,5 | 74,7 | 139,7 | 4 | 19,0 | 3,600 |
| 3" | 190,5 | 23,8 | 127,0 | 107,9 | 90,7 | 152,4 | 4 | 19,0 | 4,100 |
| 3 1/2" | 215,9 | 23,8 | 139,7 | 122,2 | 103,4 | 177,8 | 8 | 19,0 | 5,200 |
| 4" | 228,6 | 23,8 | 157,2 | 134,9 | 116,1 | 190,5 | 8 | 19,0 | 5,600 |
| 5" | 254,0 | 23,8 | 185,7 | 163,6 | 143,8 | 215,9 | 8 | 22,2 | 6,300 |
| 6" | 279,4 | 25,4 | 215,9 | 192,1 | 170,7 | 241,3 | 8 | 22,2 | 7,500 |
| 8" | 342,9 | 28,6 | 269,9 | 246,1 | 221,5 | 298,4 | 8 | 22,2 | 12,600 |
| 10" | 406,4 | 30,2 | 323,8 | 304,8 | 276,3 | 361,9 | 12 | 25,4 | 18,500 |
| 12" | 482,6 | 31,7 | 381,0 | 365,1 | 327,1 | 431,8 | 12 | 25,5 | 28,000 |
| 14" | 533,4 | 34,9 | 412,7 | 400,0 | 359,1 | 476,2 | 12 | 28,6 | 36,000 |
| 16" | 596,9 | 36,5 | 469,9 | 457,2 | 410,5 | 539,7 | 16 | 28,6 | 46,000 |
| 18" | 635,0 | 39,7 | 533,4 | 504,8 | 461,8 | 577,8 | 16 | 31,7 | 50,000 |
| 20" | 698,5 | 42,9 | 584,2 | 558,8 | 513,1 | 635,0 | 20 | 31,7 | 64,000 |
| 22" | 749,3 | 46,0 | 641,2 | 609,6 | 564,4 | 692,1 | 20 | 34,9 | 72,000 |
| 24" | 812,8 | 47,6 | 692,1 | 663,6 | 615,9 | 749,3 | 20 | 34,9 | 89,000 |
