ANSI/ASME B16.5 Slip On Fange

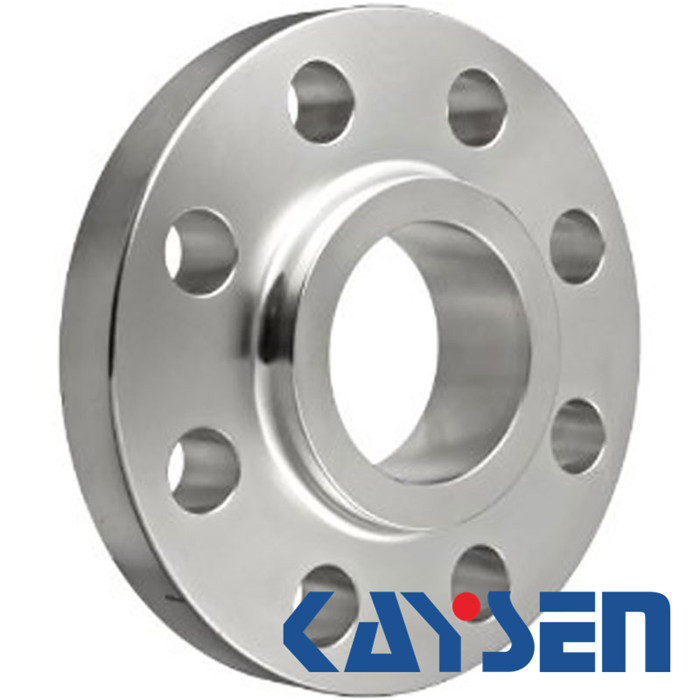

ASME B16.5 Slip On Flange Class 400
Standard: ASME B16.5
Flange type: Slip On Flange
Size range: 1/2’’-24’’
Pressure: Class 400
Material: Stainless steel , Alloy Steel , Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.
▲Standard: ASME B16.5
▲Flange type: Slip On Flange
▲Size range: 1/2"-24"
▲Pressure class: Class 400
▲Material:
1) Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31254/S31260/S32550/S32707
2) Carbon Steel Material:
ASTM A105, A350 LF2,P235GH,P250GH,SS400,Q235,C22.8,20#,16MN.
3) Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91,ASTM A694 F42/F46/F52/F60/F65/F70/F80.
4) Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
5) Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incoloy 800, 825, Hastelloy C22,C276
▲Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc, Hot dipped/ Electric galvanized.
▲Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard:ASME B16.5 Slip On Flange
Type:Slip On Flange
Pressure:Class 400
Size:1/2’’-24’’
Raw Material:Stainless steel,Alloy Steel , Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.
Process:Forged
| ASME B16.5 Slip On Flange Class 400 LBS Dimensions | |||||||||
| NPS | A | B | I | Holes | C | D | F | G | Weight |
| 1/2″ | 95 | 22.4 | 16 | 4 | 14.2 | 22.4 | 38.1 | 34.9 | 0.73 |
| 3/4″ | 117 | 27.7 | 19 | 4 | 15.7 | 25.4 | 47.8 | 42.9 | 1.24 |
| 1″ | 124 | 34.5 | 19 | 4 | 17.5 | 26.9 | 53.8 | 50.8 | 1.53 |
| 1-1/4″ | 133 | 43.2 | 19 | 4 | 20.6 | 28.4 | 63.5 | 63.5 | 2.02 |
| 1-1/2″ | 155 | 49.5 | 22 | 4 | 22.4 | 31.8 | 69.9 | 73 | 2.97 |
| 2″ | 165 | 62 | 19 | 8 | 25.4 | 36.8 | 84.1 | 92.1 | 3.62 |
| 2-1/2″ | 191 | 74.7 | 22 | 8 | 28.4 | 41.1 | 100.1 | 104.8 | 5.29 |
| 3″ | 210 | 90.7 | 22 | 8 | 31.8 | 46 | 117.3 | 127 | 7.07 |
| 3-1/2″ | 229 | 103.4 | 25 | 8 | 35.1 | 49.3 | 133.4 | 139.7 | 8.92 |
| 4″ | 254 | 116.1 | 25 | 8 | 35.1 | 50.8 | 146.1 | 157.2 | 11.16 |
| 5″ | 279 | 143.8 | 25 | 8 | 38.1 | 53.8 | 177.8 | 185.7 | 13.85 |
| 6″ | 318 | 170.7 | 25 | 12 | 41.1 | 57.2 | 206.2 | 215.9 | 18.35 |
| 8″ | 381 | 221.5 | 29 | 12 | 47.8 | 68.3 | 260.4 | 269.9 | 28.65 |
| 10″ | 445 | 276.4 | 32 | 16 | 55.8 | 73.2 | 320.5 | 323.8 | 40.14 |
| 12″ | 521 | 327.2 | 35 | 16 | 57.2 | 79.2 | 374.7 | 381 | 57.07 |
| 14″ | 584 | 359.2 | 35 | 20 | 60.5 | 84.1 | 425.5 | 412.8 | 79.14 |
| 16″ | 648 | 410.5 | 39 | 20 | 63.5 | 93.7 | 482.6 | 469.9 | 100.55 |
| 18″ | 710 | 461.8 | 39 | 24 | 66.5 | 98 | 533.4 | 533.4 | 120.91 |
| 20″ | 775 | 513.1 | 42 | 24 | 69.9 | 101.6 | 587.2 | 584.2 | 146.13 |
| 24″ | 914 | 616 | 48 | 24 | 76.2 | 114.3 | 701.5 | 692.2 | 218.59 |
