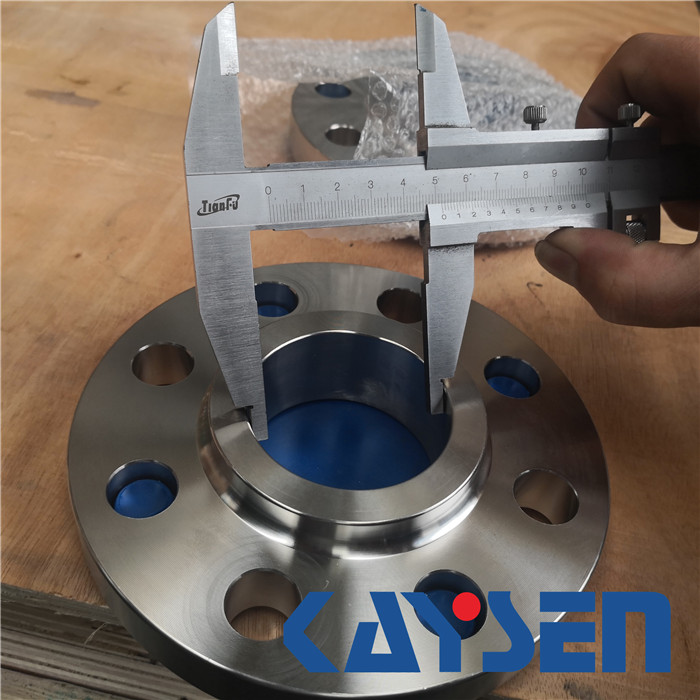

ANSI/ASME B16.5 Slip On Fange
ASME B16.5 Slip On Flange Class 900
Standard: ASME B16.5
Flange type: Slip On Flange
Size range: 1/2''-24''
Pressure: Class 900
Material: Stainless steel , Alloy Steel , Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.
▲Standard: ASME B16.5
▲Flange type: Slip On Flange
▲Size range: 1/2"-24"
▲Pressure class: Class 900
▲Material:
1) Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31254/S31260/S32550/S32707
2) Carbon Steel Material:
ASTM A105, A350 LF2,P235GH,P250GH,SS400,Q235,C22.8,20#,16MN.
3) Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91,ASTM A694 F42/F46/F52/F60/F65/F70/F80.
4) Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
5) Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incoloy 800, 825, Hastelloy C22,C276
▲Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc, Hot dipped/ Electric galvanized.
▲Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Keywords: China Stainless steel flange, slip on flange, ASME B16.5 Slip on flange
Standard:ASME B16.5 Slip On Flange
Type:Slip On Flange
Pressure:Class 900
Size:1/2’’-24’’
Raw Material:Stainless steel,Alloy Steel , Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.
Process:Forged

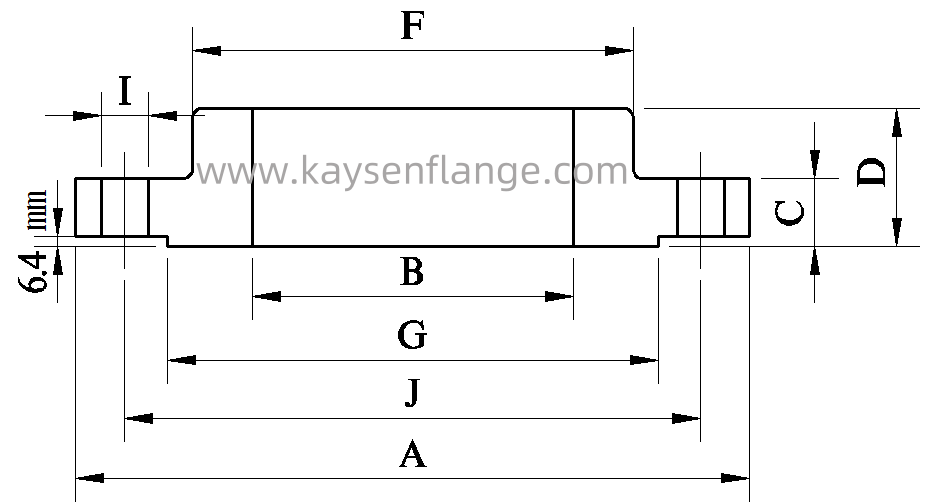

| ASME B16.5 Slip On Flange Class 900 LBS Dimensions | |||||||||
| NPS | A | B | I | Holes | C | D | F | G | Weight |
| 1/2″ | 121 | 22.4 | 23 | 4 | 22.4 | 31.3 | 38.1 | 34.9 | 1.74 |
| 3/4″ | 130 | 27.7 | 23 | 4 | 25.4 | 35.1 | 44.5 | 42.9 | 2.31 |
| 1″ | 149 | 34.5 | 26 | 4 | 28.4 | 41.1 | 52.3 | 50.8 | 3.38 |
| 1-1/4″ | 159 | 43.2 | 26 | 4 | 28.4 | 41.1 | 63.5 | 63.5 | 3.88 |
| 1-1/2″ | 178 | 49.5 | 29 | 4 | 31.8 | 44.5 | 69.9 | 73 | 5.38 |
| 2″ | 216 | 62 | 26 | 8 | 38.1 | 57.2 | 104.6 | 92.1 | 9.8 |
| 2-1/2″ | 244 | 74.7 | 29 | 8 | 41.1 | 63.5 | 124 | 104.8 | 13.53 |
| 3″ | 241 | 90.7 | 26 | 8 | 38.1 | 53.8 | 127 | 127 | 11.51 |
| 4″ | 292 | 116.1 | 32 | 8 | 44.5 | 69.9 | 158.8 | 157.2 | 19.73 |
| 5″ | 349 | 143.8 | 35 | 8 | 50.8 | 79.2 | 190.5 | 185.7 | 31.88 |
| 6″ | 381 | 170.7 | 32 | 12 | 55.6 | 85.9 | 235 | 215.9 | 41.12 |
| 8″ | 470 | 221.5 | 39 | 12 | 63.5 | 101.6 | 298.5 | 269.9 | 70.47 |
| 10″ | 546 | 276.4 | 39 | 16 | 69.9 | 108 | 368.3 | 323.8 | 100.1 |
| 12″ | 610 | 327.2 | 39 | 20 | 79.2 | 117.3 | 419.1 | 381 | 132.17 |
| 14″ | 641 | 359.2 | 42 | 20 | 85.9 | 130 | 450.9 | 412.8 | 152.41 |
| 16″ | 705 | 410.5 | 45 | 20 | 88.9 | 133.4 | 508 | 469.9 | 184.48 |
| 18″ | 787 | 461.8 | 51 | 20 | 101.6 | 152.4 | 565.2 | 533.4 | 257.85 |
| 20″ | 857 | 513.1 | 54 | 20 | 108 | 158.8 | 622.3 | 584.2 | 316.79 |
| 24″ | 1041 | 616 | 67 | 20 | 139.7 | 203.2 | 749.3 | 692.2 | 604.38 |
