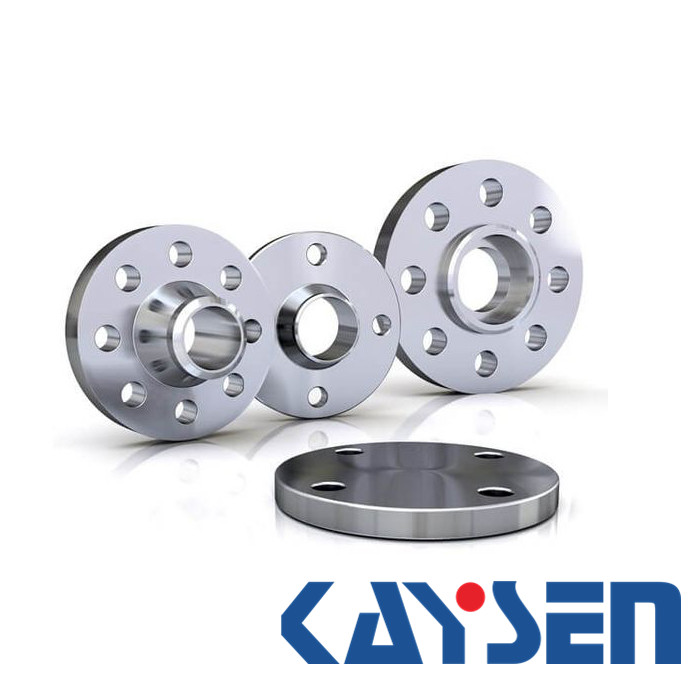

ANSI/ASME B16.5 Socket Weld Flange

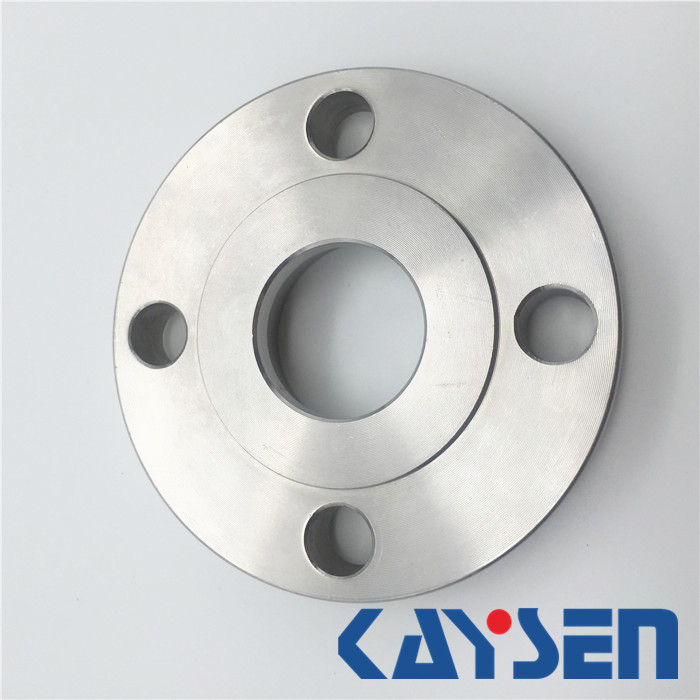

ASME/ANSI B16.5 Socket Weld Flange Class 150
Standard: ASME B16.5
Flange type: Socket Weld Flange
Size range: 1/2’’-24’’
Pressure: CLASS150
Material: Stainless steel , Alloy Steel , Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.
▲Standard: ASME B16.5
▲Flange type: Socket Weld Flange
▲Size range: 1/2"-24"
▲Pressure class: Class 150
▲Material:
1) Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31254/S31260/S32550/S32707
2) Carbon Steel Material:
ASTM A105, A350 LF2,P235GH,P250GH,SS400,Q235,C22.8,20#,16MN.
3) Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91,ASTM A694 F42/F46/F52/F60/F65/F70/F80.
4) Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
5) Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incoloy 800, 825, Hastelloy C22,C276
▲Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc, Hot dipped/ Electric galvanized.
▲Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Keywords: China Stainless steel flange, socket weld flange, ASME B16.5 socket weld flange
Standard:ASME B16.5 Socket Weld Flange
Type:Socket Weld Flange
Pressure:Class 150
Size:1/2’’-24’’
Raw Material:Stainless steel,Alloy Steel , Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.
Process:Forged
| ANSI, ASME, ASA B16.5 150lb/sq.in. SOCKET WELD FLANGE RF | |||||||||||||
| Nominal Size | Outside Diam. | Thick. of Flange | Diam. of Raised Face | Diam of Hub at Base | Length Thru Hub | Diam. of Bore | Depth of Socket | No. of Holes | Diam. of Holes | Diam. of Bolts | Diam. of Bolt Circle | Approx. Weight Pounds Kg | |
| O | C | R | X | Y | B | D | |||||||
| 1/2″ | in. | 3.5 | 0.44 | 1.38 | 1.19 | 0.62 | 0.88 | 0.38 | 4 | 0.62 | 1/2 | 2.38 | 1 |
| mm. | 88.9 | 11.2 | 35.1 | 30.2 | 15.7 | 22.4 | 9.7 | 15.7 | 12.7 | 60.5 | 0.5 | ||
| 3/4″ | in. | 3.88 | 0.5 | 1.69 | 1.5 | 0.62 | 1.09 | 0.44 | 4 | 0.62 | 1/2 | 2.75 | 2 |
| mm. | 98.6 | 12.7 | 42.9 | 38.1 | 15.7 | 27.7 | 11.2 | 15.7 | 12.7 | 69.9 | 1 | ||
| 1″ | in. | 4.25 | 0.56 | 2 | 1.94 | 0.69 | 1.36 | 0.5 | 4 | 0.62 | 1/2 | 3.12 | 2 |
| mm. | 108 | 14.2 | 50.8 | 49.3 | 17.5 | 34.5 | 12.7 | 15.7 | 12.7 | 79.2 | 1 | ||
| 1 1/4″ | in. | 4.62 | 0.62 | 2.5 | 2.31 | 0.81 | 1.7 | 0.56 | 4 | 0.62 | 1/2 | 3.5 | 3 |
| mm. | 117.3 | 15.7 | 63.5 | 58.7 | 20.6 | 43.2 | 14.2 | 15.7 | 12.7 | 88.9 | 1 | ||
| 1 1/2″ | in. | 5 | 0.69 | 2.88 | 2.56 | 0.88 | 1.95 | 0.62 | 4 | 0.62 | 1/2 | 3.88 | 3 |
| mm. | 127 | 17.5 | 73.2 | 65 | 22.4 | 49.5 | 15.7 | 15.7 | 12.7 | 98.6 | 1 | ||
| 2″ | in. | 6 | 0.75 | 3.62 | 3.06 | 1 | 2.44 | 0.69 | 4 | 0.75 | 5/8 | 4.75 | 5 |
| mm. | 152.4 | 19.1 | 91.9 | 77.7 | 25.4 | 62 | 17.5 | 19.1 | 15.9 | 120.7 | 2 | ||
| 2 1/2″ | in. | 7 | 0.88 | 4.12 | 3.56 | 1.12 | 2.94 | 0.75 | 4 | 0.75 | 5/8 | 5.5 | 7 |
| mm. | 177.8 | 22.4 | 104.6 | 90.4 | 28.4 | 74.7 | 19.1 | 19.1 | 15.9 | 139.7 | 3 | ||
| 3″ | in. | 7.5 | 0.94 | 5 | 4.25 | 1.19 | 3.57 | 0.81 | 4 | 0.75 | 5/8 | 6 | 8 |
| mm. | 190.5 | 23.9 | 127 | 108 | 30.2 | 90.7 | 20.6 | 19.1 | 15.9 | 152.4 | 4 | ||
| 3 1/2″ | in. | 8.5 | 0.94 | 5.5 | 4.81 | 1.25 | 4.07 | 8 | 0.75 | 5/8 | 7 | 11 | |
| mm. | 215.9 | 23.9 | 139.7 | 122.2 | 31.8 | 103.4 | 19.1 | 15.9 | 177.8 | 5 | |||
| 4″ | in. | 9 | 0.94 | 6.19 | 5.31 | 1.31 | 4.57 | 8 | 0.75 | 5/8 | 7.5 | 13 | |
| mm. | 228.6 | 23.9 | 157.2 | 134.9 | 33.3 | 116.1 | 19.1 | 15.9 | 190.5 | 6 | |||
| 5″ | in. | 10 | 0.94 | 7.31 | 6.44 | 1.44 | 5.66 | 8 | 0.88 | 3/4 | 8.5 | 15 | |
| mm. | 254 | 23.9 | 185.7 | 163.6 | 36.6 | 143.8 | 22.4 | 19.1 | 215.9 | 7 | |||
| 6″ | in. | 11 | 1 | 8.5 | 7.56 | 1.56 | 6.72 | 8 | 0.88 | 3/4 | 9.5 | 19 | |
| mm. | 279.4 | 25.4 | 215.9 | 192 | 39.6 | 170.7 | 22.4 | 19.1 | 241.3 | 9 | |||
| 8″ | in. | 13.5 | 1.12 | 10.62 | 9.69 | 1.75 | 8.72 | 8 | 0.88 | 3/4 | 11.75 | 30 | |
| mm. | 342.9 | 28.4 | 269.7 | 246.1 | 44.5 | 221.5 | 22.4 | 19.1 | 298.5 | 14 | |||
| 10″ | in. | 16 | 1.19 | 12.75 | 12 | 1.94 | 10.88 | 12 | 1 | 7/8 | 14.25 | 43 | |
| mm. | 406.4 | 30.2 | 323.9 | 304.8 | 49.3 | 276.4 | 25.4 | 22.2 | 362 | 20 | |||
| 12″ | in. | 19 | 1.25 | 15 | 14.38 | 2.19 | 12.88 | 12 | 1 | 7/8 | 17 | 64 | |
| mm. | 482.6 | 31.8 | 381 | 365.3 | 55.6 | 327.2 | 25.4 | 22.2 | 431.8 | 29 | |||
| 14″ | in. | 21 | 1.38 | 16.25 | 15.75 | 2.25 | 14.14 | 12 | 1.12 | 1 | 18.75 | 90 | |
| mm. | 533.4 | 35.1 | 412.8 | 400.1 | 57.2 | 359.2 | 28.4 | 25.4 | 476.3 | 41 | |||
| 16″ | in. | 23.5 | 1.44 | 18.5 | 18 | 2.5 | 16.16 | 16 | 1.12 | 1 | 21.25 | 98 | |
| mm. | 596.9 | 36.6 | 469.9 | 457.2 | 63.5 | 410.5 | 28.4 | 25.4 | 539.8 | 44 | |||
| 18″ | in. | 25 | 1.56 | 21 | 19.88 | 2.69 | 18.18 | 16 | 1.25 | 1 1/8 | 22.75 | 130 | |
| mm. | 635 | 39.6 | 533.4 | 505 | 68.3 | 461.8 | 31.8 | 28.6 | 577.9 | 59 | |||
| 20″ | in. | 27.5 | 1.69 | 23 | 22 | 2.88 | 20.2 | 20 | 1.25 | 1 1/8 | 25 | 165 | |
| mm. | 698.5 | 42.9 | 584.2 | 558.8 | 73.2 | 513.1 | 31.8 | 28.6 | 635 | 75 | |||
| 24″ | in. | 32 | 1.88 | 27.25 | 26.12 | 3.25 | 24.25 | 20 | 1.38 | 1 1/4 | 29.5 | 220 | |
| mm. | 812.8 | 47.8 | 692.2 | 663.4 | 82.6 | 616 | 35.1 | 31.8 | 749.3 | 100 | |||
