ANSI/ASME B16.5 Socket Weld Flange

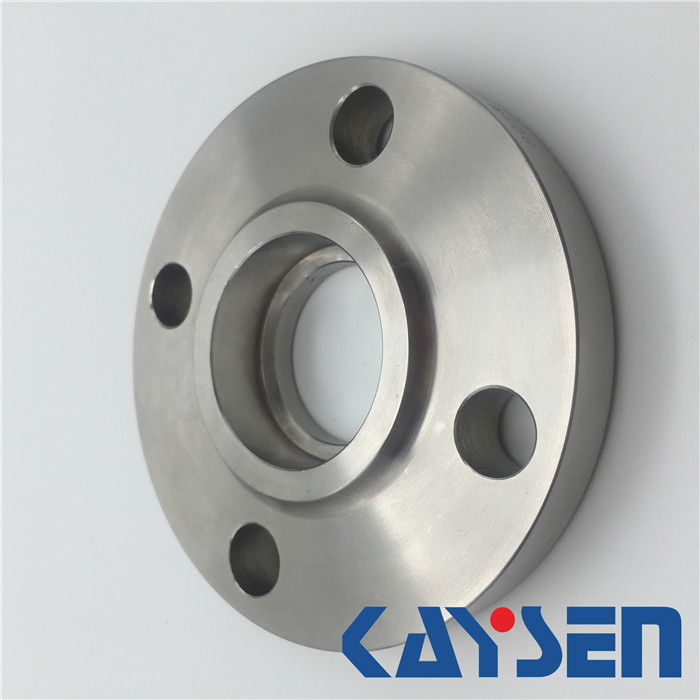

ASME/ANSI B16.5 Socket Weld Flange Class 1500
Standard: ASME B16.5
Flange type: Socket Weld Flange
Size range: 1/2''-24''
Pressure: CLASS1500
Material: Stainless steel , Alloy Steel , Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.
▲Standard: ASME B16.5
▲Flange type: Socket Weld Flange
▲Size range: 1/2"-24"
▲Pressure class: Class 1500
▲Material:
1) Stainless Steel Material:

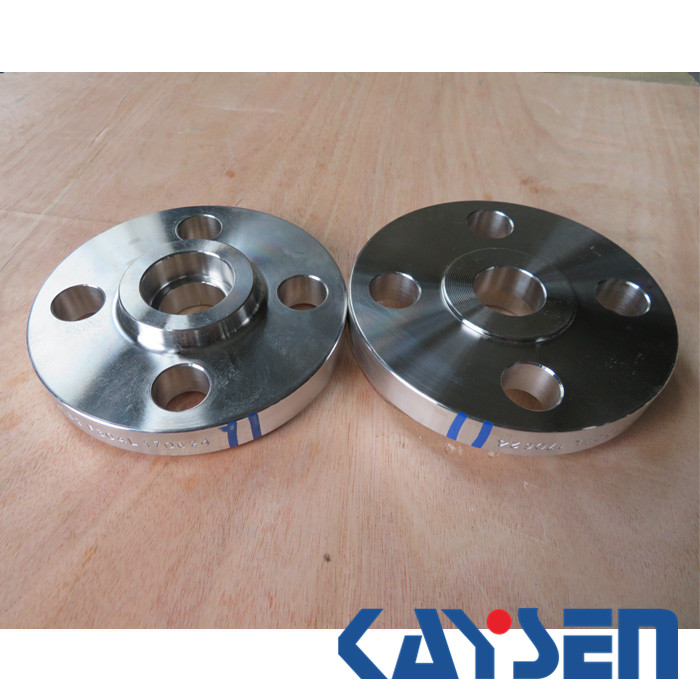

ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31254/S31260/S32550/S32707
2) Carbon Steel Material:
ASTM A105, A350 LF2,P235GH,P250GH,SS400,Q235,C22.8,20#,16MN.
3) Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91,ASTM A694 F42/F46/F52/F60/F65/F70/F80.
4) Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
5) Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incoloy 800, 825, Hastelloy C22,C276
▲Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc, Hot dipped/ Electric galvanized.
▲Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Keywords: China Stainless steel flange, socket weld flange, ASME B16.5 socket weld flange,forged steel flanges
Standard:ASME B16.5
Flange type: Socket Weld Flange
Size range: 1/2"-24"
Pressure: Class1500
Material: Stainless steel , Alloy Steel , Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.
| ANSI, ASME, ASA B16.5 1500lb/sq.in. SOCKET WELD FLANGE RF | |||||||||||||

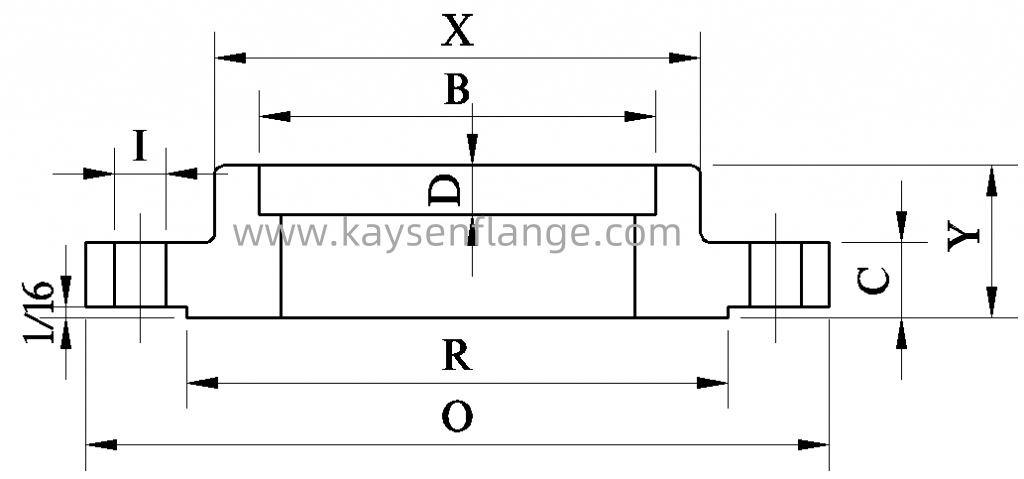

| Nominal Size | Outside Diam. | Thick. of Flange | Diam. of Raised Face | Diam of Hub at Base | Length Thru Hub | Diam. of Bore | Depth of Socket | No. of Holes | Diam. of Holes | Diam. of Bolts | Diam. of Bolt Circle | Approx. Weight Pounds Kg | |
| O | C | R | X | Y | B | D | |||||||
| 1/2″ | in. | 4.75 | 0.88 | 1.38 | 1.5 | 1.25 | 0.88 | 0.38 | 4 | 0.88 | 3/4 | 3.25 | 4 |
| mm. | 120.7 | 22.4 | 35.1 | 38.1 | 31.8 | 22.4 | 9.7 | 22.4 | 19.1 | 82.6 | 2 | ||
| 3/4″ | in. | 5.12 | 1 | 1.69 | 1.75 | 1.38 | 1.09 | 0.44 | 4 | 0.88 | 3/4 | 3.5 | 5 |
| mm. | 130 | 25.4 | 42.9 | 44.5 | 35.1 | 27.7 | 11.2 | 22.4 | 19.1 | 88.9 | 2 | ||
| 1″ | in. | 5.88 | 1.12 | 2 | 2.06 | 1.62 | 1.36 | 0.5 | 4 | 1 | 7/8 | 4 | 8 |
| mm. | 149.4 | 28.4 | 50.8 | 52.3 | 41.1 | 34.5 | 12.7 | 25.4 | 22.2 | 101.6 | 4 | ||
| 1 1/4″ | in. | 6.25 | 1.12 | 2.5 | 2.5 | 1.62 | 1.7 | 0.56 | 4 | 1 | 7/8 | 4.38 | 9 |
| mm. | 158.8 | 28.4 | 63.5 | 63.5 | 41.1 | 43.2 | 14.2 | 25.4 | 22.2 | 111.3 | 4 | ||
| 1 1/2″ | in. | 7 | 1.25 | 2.88 | 2.75 | 1.75 | 1.95 | 0.62 | 4 | 1.12 | 1 | 4.88 | 12 |
| mm. | 177.8 | 31.8 | 73.2 | 69.9 | 44.5 | 49.5 | 15.7 | 28.4 | 25.4 | 124 | 5 | ||
| 2″ | in. | 8.5 | 1.5 | 3.62 | 4.12 | 2.25 | 2.44 | 0.69 | 8 | 1 | 7/8 | 6.5 | 25 |
| mm. | 215.9 | 38.1 | 91.9 | 104.6 | 57.2 | 62 | 17.5 | 25.4 | 22.2 | 165.1 | 11 | ||
| 2 1/2″ | in. | 9. 2 | 1. 2 | 4. 2 | 4. 8 | 2.5 | 2. 4 | 0. 5 | 8 | 1. 2 | 1 | 7.5 | 36 |
| mm. | 244.3 | 41.1 | 104.6 | 124 | 63.5 | 74.7 | 19.1 | 28.4 | 25.4 | 190.5 | 16 | ||
| 3″ | in. | 10.5 | 1.88 | 5 | 5.25 | 2.88 | 8 | 1.25 | 1 1/8 | 8 | 48 | ||
| mm. | 266.7 | 47.8 | 127 | 133.4 | 73.2 | 31.8 | 28.6 | 203.2 | 22 | ||||
| 4″ | in. | 12.25 | 2.12 | 6.19 | 6.38 | 3.56 | 8 | 1.38 | 1 1/4 | 9.5 | 73 | ||
| mm. | 311.2 | 53.8 | 157.2 | 162.1 | 90.4 | 35.1 | 31.8 | 241.3 | 33 | ||||
| 5″ | in. | 14.75 | 2.88 | 7.31 | 7.75 | 4.12 | 8 | 1.62 | 1 1/2 | 11.5 | 130 | ||
| mm. | 374.7 | 73.2 | 185.7 | 196.9 | 104.6 | 41.1 | 38.1 | 292.1 | 59 | ||||
| 6″ | in. | 15.5 | 3.25 | 8.5 | 9 | 4.69 | 12 | 1.5 | 1 3/8 | 12.5 | 165 | ||
| mm. | 393.7 | 82.6 | 215.9 | 228.6 | 119.1 | 38.1 | 34.9 | 317.5 | 75 | ||||
| 8″ | in. | 19 | 3.62 | 10.62 | 11.5 | 5.62 | 12 | 1.75 | 1 5/8 | 15.5 | 260 | ||
| mm. | 482.6 | 91.9 | 269.7 | 292.1 | 142.7 | 44.5 | 41.3 | 393.7 | 118 | ||||
| 10″ | in. | 23 | 4.25 | 12.75 | 14.5 | 6.25 | 12 | 2 | 1 7/8 | 19 | 435 | ||
| mm. | 584.2 | 108 | 323.9 | 368.3 | 158.8 | 50.8 | 47.6 | 482.6 | 197 | ||||
| 12″ | in. | 26.5 | 4.88 | 15 | 17.75 | 7.12 | 16 | 2.12 | 2 | 22.5 | 580 | ||
| mm. | 673.1 | 124 | 381 | 450.9 | 180.8 | 53.8 | 50.8 | 571.5 | 263 | ||||
| 14″ | in. | 29.5 | 5.25 | 16.25 | 19.5 | 16 | 2.38 | 2 1/4 | 25 | ||||
| mm. | 749.3 | 133.4 | 412.8 | 495.3 | 60.5 | 57.2 | 635 | ||||||
| 16″ | in. | 32.5 | 5.75 | 18.5 | 21.75 | 16 | 2.62 | 2 1/2 | 27.75 | ||||
| mm. | 825.5 | 146.1 | 469.9 | 552.5 | 66.5 | 63.5 | 704.9 | ||||||
| 18″ | in. | 36 | 6.38 | 21 | 23.5 | 16 | 2.88 | 2 3/4 | 30.5 | ||||
| mm. | 914.4 | 162.1 | 533.4 | 596.9 | 73.2 | 69.9 | 774.7 | ||||||
| 20″ | in. | 38.75 | 7 | 23 | 25.25 | 16 | 3.12 | 3 | 32.75 | ||||
| mm. | 984.3 | 177.8 | 584.2 | 641.4 | 79.2 | 76.2 | 831.9 | ||||||
| 24″ | in. | 46 | 8 | 27.25 | 30 | 16 | 3.62 | 3 1/2 | 39 | ||||
| mm. | 1168.4 | 203.2 | 692.2 | 762 | 91.9 | 88.9 | 990.6 | ||||||
