ANSI/ASME B16.5 Socket Weld Flange

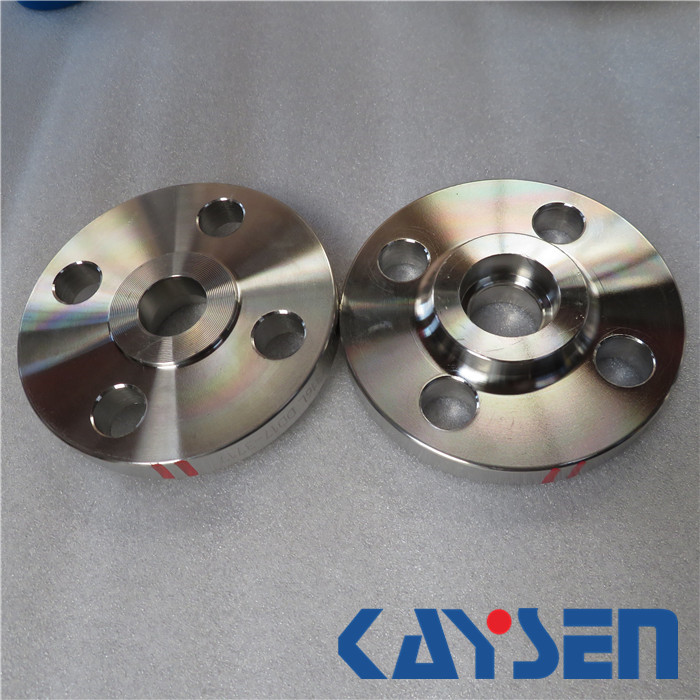

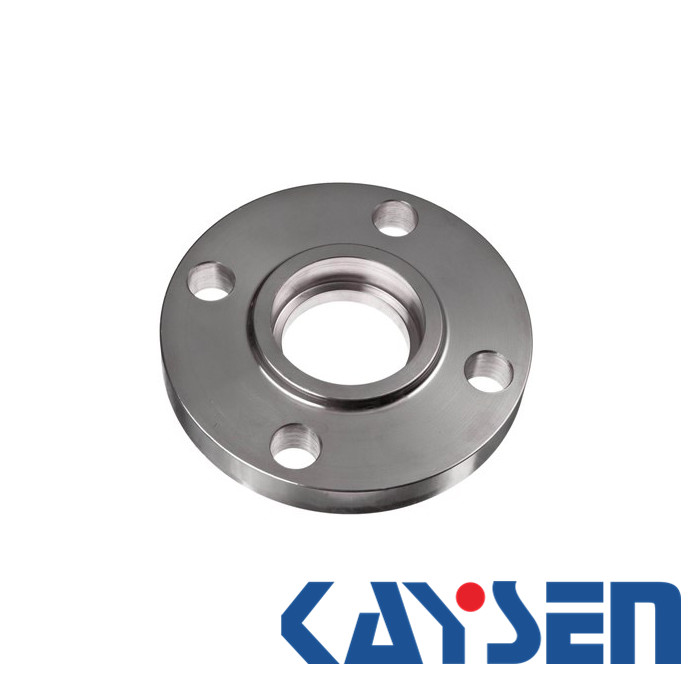

ASME/ANSI B16.5 Socket Weld Flange Class 2500
Standard: ASME B16.5
Flange type: Socket Weld Flange
Size range: 1/2''-12''
Pressure: CLASS2500
Material: Stainless steel , Alloy Steel , Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.
▲Standard: ASME B16.5
▲Flange type: Socket Weld Flange
▲Size range: 1/2"-12"
▲Pressure class: Class 2500
▲Material:
1) Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31254/S31260/S32550/S32707
2) Carbon Steel Material:
ASTM A105, A350 LF2,P235GH,P250GH,SS400,Q235,C22.8,20#,16MN.
3) Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91,ASTM A694 F42/F46/F52/F60/F65/F70/F80.
4) Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
5) Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incoloy 800, 825, Hastelloy C22,C276
▲Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc, Hot dipped/ Electric galvanized.
▲Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Keywords: China Stainless steel flange, CL2500 socket weld flange, ASME B16.5 socket weld flange
Standard:ASME B16.5
Flange type: Socket Weld Flange
Size range: 1/2"-12"
Pressure: Class2500
Material: Stainless steel , Alloy Steel , Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.

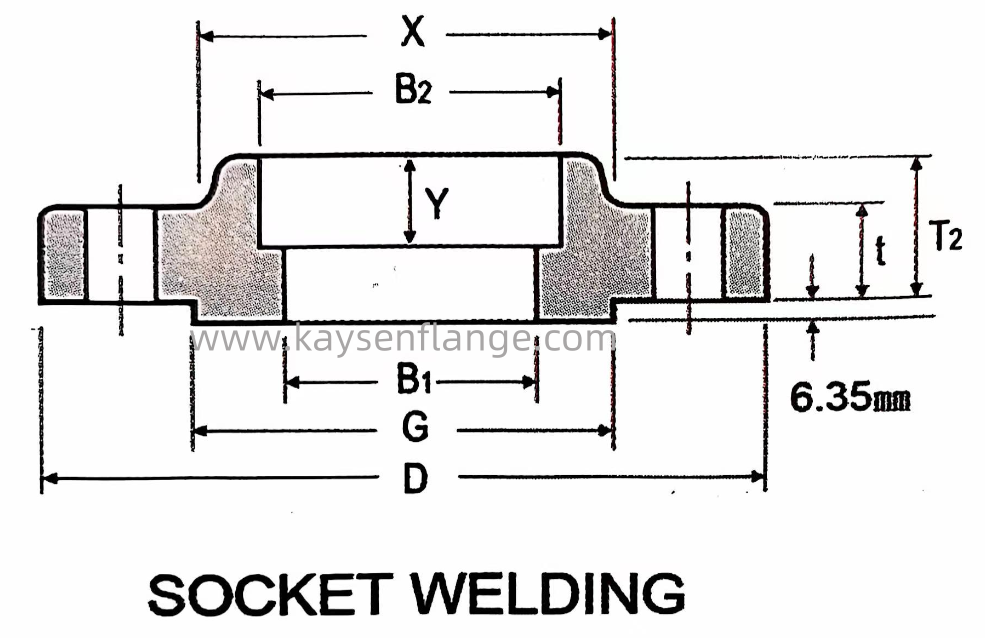

| NPS | O.D | Diam.at Base of Hub | O.D of Raised Face | Thick-ness | BORE | LENGTH THRU HUB | Diam.of Hub at Bevel | Radius of Fillet | Threaded Length | |||
| Welding Neck Socket Welding | Slip-on Socket Welding | Counter Bore Min.Threaded Min, | Welding Neck | Slip-on Threaded Socket welding | ||||||||
| D | X | G | t | B1 | B2 | B | T1 | T2 | A | R | Q | |
| 1/2" | 133.4 | 42.9 | 35.1 | 30.2 | To be specified by purchaser | 22.4 | 23.6 | 73.2 | 39.6 | 21.3 | 3.0 | 28.4 |
| 3/4" | 139.7 | 50.8 | 42.9 | 31.8 | 27.7 | 29.0 | 79.2 | 42.9 | 26.7 | 3.0 | 31.8 | |
| 1" | 158.8 | 57.2 | 50.8 | 35.1 | 34.5 | 35.8 | 88.9 | 47.8 | 33.5 | 3.0 | 35.1 | |
| 1 1/4" | 184.2 | 73.2 | 63.5 | 38.1 | 43.2 | 44.5 | 95.3 | 52.3 | 42.2 | 4.8 | 38.1 | |
| 1 1/2" | 203.2 | 79.2 | 73.2 | 44.5 | 49.5 | 50.5 | 111.3 | 60.5 | 48.3 | 6.4 | 44.5 | |
| 2" | 235.0 | 95.3 | 91.9 | 50.8 | 62.0 | 63.5 | 127.0 | 69.9 | 60.5 | 7.9 | 50.8 | |
| 2 1/2" | 266.7 | 114.3 | 104.6 | 57.2 | 74.7 | 76.2 | 142.7 | 79.2 | 73.2 | 7.9 | 57.2 | |
| 3" | 304.8 | 133.4 | 127.0 | 66.5 | 90.7 | 92.2 | 168.1 | 91.9 | 88.9 | 9.7 | 63.5 | |
| 4" | 355.6 | 165.1 | 157.2 | 76.2 | 116.1 | 117.6 | 190.5 | 108.0 | 114.3 | 11.2 | 69.9 | |
| 5" | 419.1 | 203.2 | 185.7 | 91.9 | 143.8 | 144.5 | 228.6 | 130.0 | 141.2 | 11.2 | 76.2 | |
| 6" | 482.6 | 235.0 | 215.9 | 108.0 | 170.7 | 171.5 | 273.1 | 152.4 | 168.4 | 12.7 | 82.6 | |
| 8" | 552.5 | 304.8 | 269.7 | 127.0 | 221.5 | 222.3 | 317.5 | 177.8 | 219.2 | 12.7 | 95.3 | |
| 10" | 673.1 | 374.7 | 323.9 | 165.1 | 276.4 | 276.4 | 419.1 | 228.6 | 273.1 | 12.7 | 108.0 | |
| 12" | 762.0 | 441.5 | 381.0 | 184.2 | 327.2 | 328.7 | 463.6 | 254.0 | 232.9 | 12.7 | 120.7 | |
