ANSI/ASME B16.5 Threaded Flange

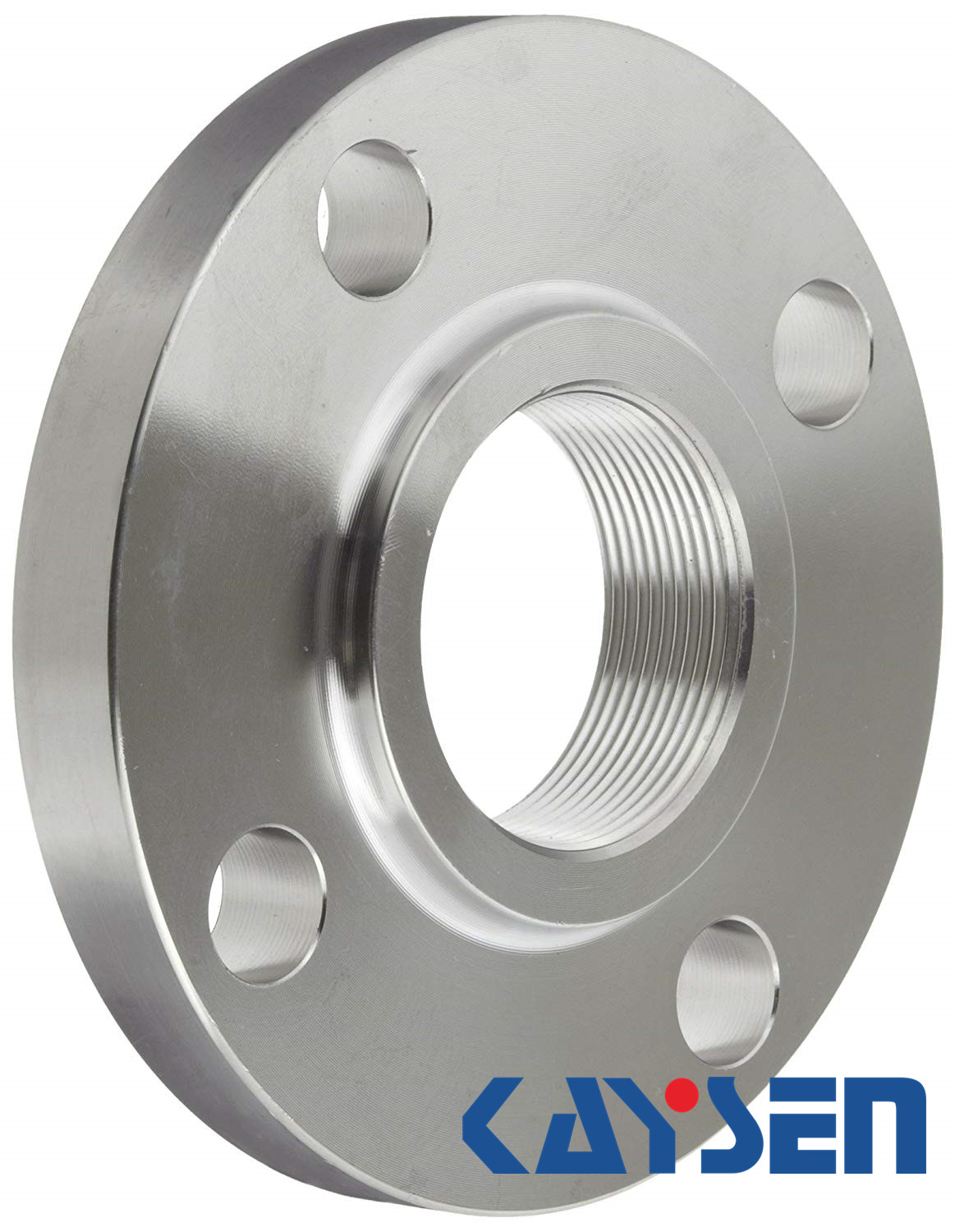

ASME/ANSI B16.5 Threaded Flange Class 900
Standard: ASME/ANSI B16.5
Flange type: Threaded Flange
Size range: 1/2''-24''
Pressure: Class 900
Material: Stainless steel , Alloy Steel , Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.
▲Standard: ASME/ANSI B16.5
▲Flange type: Threaded Flange
▲Size range: 1/2"-24"
▲Pressure class: Class 900
▲Material:
1)Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31254/S31260/S32550/S32707
2)Carbon Steel Material:
ASTM A105, A350 LF2,P235GH,P250GH,SS400,Q235,C22.8,20#,16mn.
3)Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91,ASTM A694 F42/F46/F52/F60/F65/F70/F80.
4)Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
5)Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incoloy 800, 825, Hastelloy C22,C276
▲Surface treatment:Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc, Hot dipped/ Electric galvanized.
▲Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard:ASME B16.5 Threaded Flange
Type:Threaded Flange
Pressure:Class 900
Size:1/2’’-24’’
Raw Material:Stainless steel,Alloy Steel , Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.
Process:Forged

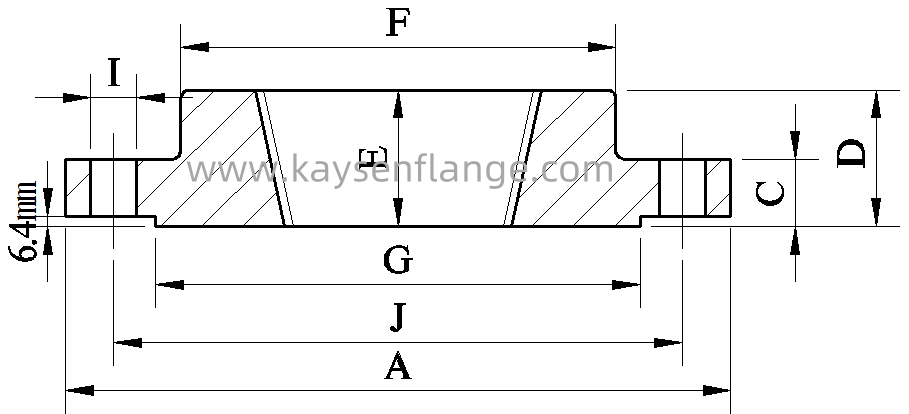

| ASME B16.5 Threaded Flange Class 900LBS Dimensions | |||||||||
| NPS | A | B | I | Holes | C | D | F | G | Weight |
| 1/2″ | 121 | 19.85 | 23 | 4 | 22.4 | 31.3 | 38.1 | 34.9 | 1.77 |
| 3/4″ | 130 | 25.25 | 23 | 4 | 25.4 | 35.1 | 44.5 | 42.9 | 2.34 |
| 1″ | 149 | 31.63 | 26 | 4 | 28.4 | 41.1 | 52.3 | 50.8 | 3.44 |
| 1-1/4″ | 159 | 40.43 | 26 | 4 | 28.4 | 41.1 | 63.5 | 63.5 | 3.95 |
| 1-1/2″ | 178 | 46.53 | 29 | 4 | 31.8 | 44.5 | 69.9 | 73 | 5.46 |
| 2″ | 216 | 58.53 | 26 | 8 | 38.1 | 57.2 | 104.6 | 92.1 | 9.97 |
| 2-1/2″ | 244 | 70.46 | 29 | 8 | 41.1 | 63.5 | 124 | 104.8 | 13.8 |
| 3″ | 241 | 86.36 | 26 | 8 | 38.1 | 53.8 | 127 | 127 | 11.8 |
| 4″ | 292 | 111.76 | 32 | 8 | 44.5 | 69.9 | 158.8 | 157.2 | 20.19 |
| 5″ | 349 | 138.76 | 35 | 8 | 50.8 | 79.2 | 190.5 | 185.7 | 32.63 |
| 6″ | 381 | 165.76 | 32 | 12 | 55.6 | 85.9 | 235 | 215.9 | 42.06 |
| 8″ | 470 | 216.56 | 39 | 12 | 63.5 | 101.6 | 298.5 | 269.9 | 71.91 |
| 10″ | 546 | 270.46 | 39 | 16 | 69.9 | 108 | 368.3 | 323.8 | 102.39 |
| 12″ | 610 | 321.26 | 39 | 20 | 79.2 | 117.3 | 419.1 | 381 | 135.1 |
| 14″ | 641 | 353.06 | 42 | 20 | 85.9 | 130 | 450.9 | 412.8 | 156.08 |
| 16″ | 705 | 403.86 | 45 | 20 | 88.9 | 133.4 | 508 | 46 | 189.14 |
| 9.9 | |||||||||
| 18″ | 787 | 454.66 | 51 | 20 | 101.6 | 152.4 | 565.2 | 533.4 | 264.26 |
| 20″ | 857 | 505.46 | 54 | 20 | 108 | 158.8 | 622.3 | 584.2 | 324.72 |
| 24″ | 1041 | 607.06 | 67 | 20 | 139.7 | 203.2 | 749.3 | 692.2 | 618.5 |
