ANSI/ASME B16.5 Weld Neck Flange
ANSI B16.5 Weld Neck Flange Class 150
Standard: ANSI B16.5
Flange type: weld neck flange
Size range: 1/2’’-24’’
Pressure: Class 150
Material: Stainless steel , Alloy Steel , Carbon Steel
▲Product name: ANSI B16.5 Weld Neck Flange Class 150
▲Standard: ANSI B16.5
▲Flange type: weld neck flange
▲Size range: 1/2"-24"
▲Pressure: Class 150
▲Sealing surface: raised face, flat face, ring type joint, lap-joint face, large male-female, small male-female, large tongue & groove, small tongue & groove.
▲Surface treatment: Anti-rust oil, transparent/yellow/black painting, anti-rust paint, zinc, hot-galvanized
▲Non-destructive Testing: penetration test, ultrasonic test, radiographic test
▲Material:
1) Stainless Steel: ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
2) Duplex stainless steel: UNS S32304,S31803/S32205/2205.
3) Super Duplex stainless steel: UNS S32750/2507, S32760 /S31260/S32550/S32707
4) Carbon Steel Material: ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
5) Alloy Steel Material: ASTM A 182, GR F1,F5, F9, F11, F22, F91
6) Nickel Alloy Material: Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
This product Keywords:Stainless steel flanges Ansi B16.5 flanges Blind flange
Standard:ASME B16.5 Welding Neck Flange
Type:Welding Neck Flange
Pressure:Class 150
Size:1/2’’-24’’
Raw Material:Stainless steel,Alloy Steel , Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.
Process:Forged

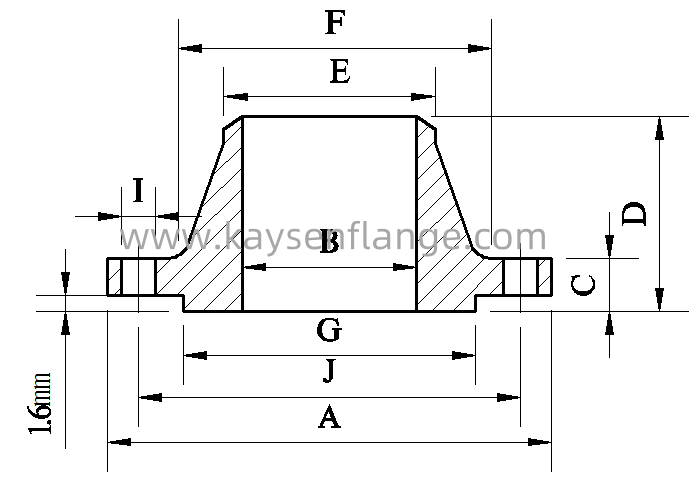

| ASME B16.5 Welding Neck Flanges Class 150LBS Dimensions | ||||||||||
| NPS | A | B | I | Holes | C | D | F | E | G | Weight |
| 1/2″ | 89 | 15.7 | 15.7 | 4 | 11.2 | 47.8 | 30.2 | 21.3 | 35.1 | 0.5 |
| 3/4″ | 99 | 20.8 | 15.7 | 4 | 12.7 | 52.3 | 38.1 | 26.7 | 42.9 | 0.73 |
| 1″ | 108 | 26.7 | 15.7 | 4 | 14.2 | 55.6 | 49.3 | 33.5 | 50.8 | 1.05 |
| 1-1/4″ | 117 | 35.1 | 15.7 | 4 | 15.7 | 57.2 | 58.7 | 42.2 | 63.5 | 1.37 |
| 1-1/2″ | 127 | 40.9 | 15.7 | 4 | 17.5 | 62 | 65 | 48.3 | 73.2 | 1.78 |
| 2″ | 152 | 52.6 | 19.1 | 4 | 19.1 | 63.5 | 77.7 | 60.5 | 91.9 | 2.65 |
| 2-1/2″ | 178 | 62.7 | 19.1 | 4 | 22.4 | 69.9 | 90.4 | 73.2 | 104.6 | 4.25 |
| 3″ | 191 | 78 | 19.1 | 4 | 23.9 | 69.9 | 108 | 88.9 | 127 | 5.1 |
| 3-1/2″ | 216 | 90.2 | 19.1 | 8 | 23.9 | 71.4 | 122.2 | 101.6 | 139.7 | 6.28 |
| 4″ | 229 | 102.4 | 19.1 | 8 | 23.9 | 76.2 | 134.9 | 114.3 | 157.2 | 7.13 |
| 5″ | 254 | 128.3 | 22.4 | 8 | 23.9 | 88.9 | 163.6 | 141.2 | 185.7 | 8.95 |
| 6″ | 279 | 154.2 | 22.4 | 8 | 25.4 | 88.9 | 192 | 168.4 | 215.9 | 10.97 |
| 8″ | 343 | 202.7 | 22.4 | 8 | 28.4 | 101.6 | 246.1 | 219.2 | 269.7 | 18.18 |
| 10″ | 406 | 254.5 | 25.4 | 12 | 30.2 | 101.6 | 304.8 | 273.1 | 323.9 | 24.92 |
| 12?” | 483 | 303.2 | 25.4 | 12 | 31.8 | 114.3 | 365.3 | 323.9 | 381 | 39.05 |
| 14″ | 533 | 333.3 | 28.4 | 12 | 35.1 | 127 | 400.1 | 355.6 | 412.8 | 52.27 |
| 16″ | 597 | 381 | 28.4 | 16 | 36.6 | 127 | 457.2 | 406.4 | 469.9 | 66.56 |
| 18″ | 635 | 428.7 | 31.8 | 16 | 39.6 | 139.7 | 505 | 457.2 | 533.4 | 78.03 |
| 20″ | 699 | 477.8 | 31.8 | 20 | 42.9 | 144.5 | 558.8 | 508 | 584.2 | 97.46 |
| 24″ | 813 | 575 | 35.1 | 20 | 47.8 | 152.4 | 663.4 | 609.6 | 692.2 | 136.6 |
