ASME B16.48 Spectacle Blind Flange Spade, Ring Spacer
ANSI B16.48 Spade or Paddle blank Class1500
Standard: ASME B16.48
Flange type: Spade or Paddle Blank
Size range: 1/2''-24''
Pressure: Class1500
Material: Stainless steel , Alloy Steel , Carbon Steel
FLANGE SPADE AND RING SPACER SPECIFICATIONS:
Standard: ASME/ANSI B16.48
Flange type: Spade paddle blank
Size range: 1/2"-24"
Pressure class: Class 1500
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Paddle blank Material:
Stainless Steel Paddle blank Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Paddle blank Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Paddle blank Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Paddle blank Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Paddle blank Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: ANSI B16.48
Flange type: paddle blank type1
Size range: 1/2"-24"
Pressure class:Class 1500
Material : Stainless steel , Alloy Steel , Carbon Steel

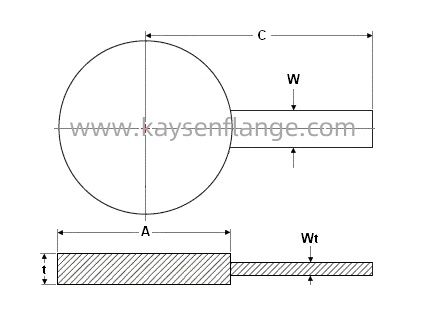

| ANSI B16.48 Spade or Paddle blank Class 1500 | |||||
| NPS | Outside | Inside | Center | Thick | Handle |
| Dia | Dia | End | ness | Width | |
| A | B | C | t | W | |
| 1/2 | 61 | 16 | 135 | 6.4 | 32 |
| 3/4 | 67 | 21 | 137 | 9.7 | 32 |
| 1 | 76 | 27 | 142 | 9.7 | 32 |
| 1.1/4 | 86 | 35 | 151 | 9.7 | 32 |
| 1.1/2 | 95 | 41 | 151 | 12.7 | 32 |
| 2 | 140 | 53 | 174 | 12.7 | 32 |
| 2.1/2 | 162 | 63 | 190 | 15.7 | 32 |
| 3 | 172 | 78 | 190 | 19.1 | 32 |
| 4 | 206 | 102 | 219 | 22.4 | 38 |
| 5 | 251 | 128 | 256 | 28.4 | 38 |
| 6 | 279 | 154 | 256 | 35.1 | 38 |
| 8 | 349 | 203 | 303 | 41.1 | 38 |
| 10 | 432 | 255 | 370 | 50.8 | 44 |
| 12 | 518 | 303 | 412 | 60.5 | 44 |
| 14 | 575 | 333 | 442 | 66.5 | 44 |
| 16 | 638 | 381 | 472 | 76.2 | 44 |
| 18 | 702 | 429 | 504 | 85.9 | 51 |
| 20 | 752 | 478 | 530 | 95.3 | 51 |
| 24 | 899 | 575 | 603 | 111.3 | 51 |
General notes..
1.Dimensions are in millimeters unless otherwise indicated.
2.Spade Handles shall be solid with NO openings.
3.Ring Spacer Handles shall have a single through indicator hole located near the end of the handle. The hole diameter shall not be less than 12 mm.
4.Wt = Thickness of the handle should be 6 mm minimum, or equal to Thickness (t) if less than 6 mm.
5.Spades and Ring Spacers should be made from a plate or forging specification, approved for use by ASME B31.3, of essentially the same chemical composition as the mating flanges and piping involved.
6.Spades and Ring Spacers ASME B16.48 may be used for installation between ASME B16.5 flanges
7.Depending on a customer specification, some dimensions can be different from what on this page is defined.
