DIN Welding Neck Flange

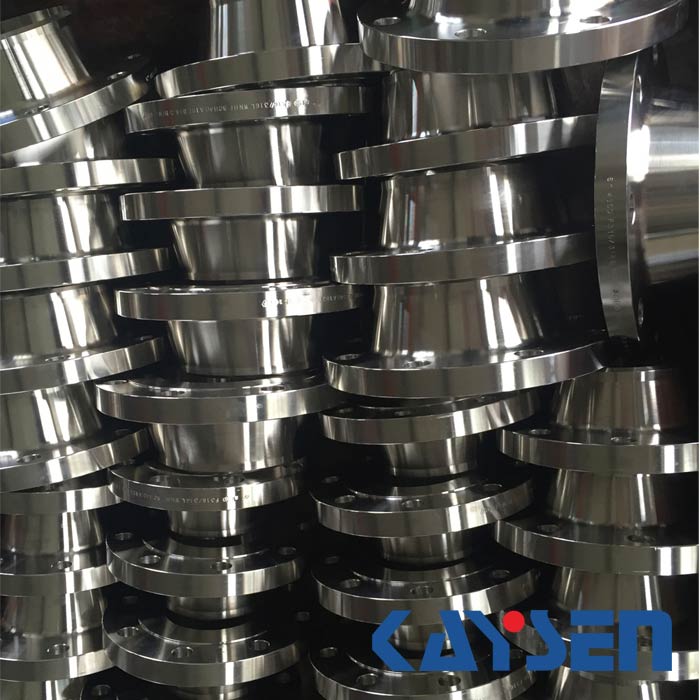

DIN 2629 PN320 Weld Neck Flange
Standard: DIN2629
Flange type: Welding Neck Flange
Size range: DN10-DN250
Pressure: PN320
Material: Stainless steel,Alloy Steel,Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.
▲Standard: DIN2629
▲Flange type: Welding Neck Flange
▲Size: DN10-DN250
▲Pressure: PN320
▲Connection type: Ring type joint,Lap-joint face,Raised face,Flat face,Large male-female,Small male-female,Large tongue & groove,Small tongue & groove.
▲ Material:
1) Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31254/S31260/S32550/S32707
2) Carbon Steel Material:
ASTM A105, A350 LF2,P235GH,P250GH,SS400,Q235,C22.8,20#,16mn.
3) Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
ASTM A694 F42/F46/F52/F60/F65/F70/F80.
4) Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
5) Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
▲Surface treatment: CNC Machined&Finishing, Anti-rust oil,Transparent/Yellow/Black Anti-rust paint, Hot dipped/ Electric galvanized.
▲Usage:Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
This product Keywords:DIN Welding Neck Flange DIN PN320 Flange DIN 2629 FLANGE

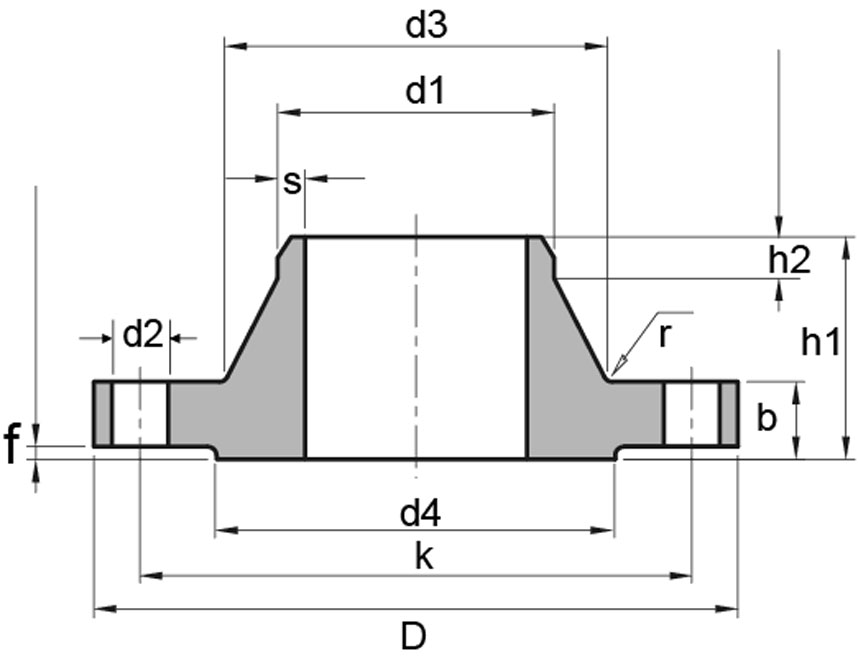

DIN 2629 PN320 Weld Neck Flange Dimensions in mm.
| Pipe | Flange | Neck | Raised face | Screws | Weight | |||||||||||
| Rated | d1 | D | b | k | strong | D3 | S | r | strong | d4 | f | No. of Holes | Thread | d2 | (7.85 Kg/dm3) | |
| DN | ISO | DIN | Each | KG/PCS | ||||||||||||
| 10 | - | 14 | 125 | 24 | 85 | 58 | 44 | 2.6 | 4 | 6 | 40 | 2 | 4 | M16 | 18 | 2.10 |
| 17.2 | - | 125 | 24 | 85 | 58 | 44 | 2.6 | 4 | 6 | 40 | 2 | 4 | M16 | 18 | 2.09 | |
| 15 | - | 20 | 130 | 26 | 90 | 60 | 48 | 3.2 | 4 | 6 | 45 | 2 | 4 | M16 | 18 | 2.49 |
| 21.3 | - | 130 | 26 | 90 | 60 | 48 | 3.2 | 4 | 6 | 45 | 2 | 4 | M16 | 18 | 2.49 | |
| 25 | - | 30 | 160 | 34 | 115 | 78 | 68 | 5 | 4 | 8 | 68 | 2 | 4 | M20 | 22 | 5.14 |
| 33.7 | - | 160 | 34 | 115 | 78 | 68 | 5 | 4 | 8 | 68 | 2 | 4 | M20 | 22 | 5.11 | |
| 40 | - | 44.5 | 195 | 38 | 145 | 88 | 92 | 6.3 | 6 | 10 | 88 | 3 | 4 | M24 | 26 | 8.53 |
| 45.3 | - | 195 | 38 | 145 | 88 | 92 | 6.3 | 6 | 10 | 88 | 3 | 4 | M24 | 26 | 8.47 | |
| 50 | 63.5 | - | 210 | 42 | 160 | 100 | 106 | 8 | 6 | 10 | 102 | 3 | 8 | M24 | 26 | 10.52 |
| 65 | 88.9 | - | 255 | 51 | 200 | 120 | 138 | 11 | 6 | 12 | 122 | 3 | 8 | M27 | 30 | 19.26 |
| 80 | 101.6 | - | 275 | 55 | 220 | 130 | 156 | 12.5 | 8 | 14 | 138 | 3 | 8 | M27 | 30 | 24.81 |
| 100 | - | 133 | 335 | 65 | 265 | 145 | 186 | 16 | 8 | 16 | 162 | 3 | 8 | M33 | 36 | 42.18 |
| 125 | - | 159 | 380 | 75 | 310 | 175 | 230 | 20 | 8 | 20 | 188 | 3 | 12 | M33 | 36 | 64.55 |
| 168.3 | - | 380 | 75 | 310 | 175 | 230 | 20 | 8 | 20 | 188 | 3 | 12 | M33 | 36 | 63.30 | |
| 150 | 193.7 | - | 425 | 84 | 350 | 195 | 265 | 25 | 10 | 25 | 218 | 3 | 12 | M33 | 36 | 91.04 |
| 175 | 219.1 | - | 485 | 95 | 400 | 215 | 308 | 28 | 10 | 28 | 260 | 3 | 12 | M39 | 42 | 135.46 |
| 200 | 244.5 | - | 525 | 103 | 440 | 235 | 345 | 30 | 10 | 30 | 285 | 3 | 16 | M39 | 42 | 170.94 |
| 250 | 323.9 | - | 640 | 125 | 540 | 300 | 428 | 40 | 12 | 40 | 345 | 3 | 16 | M39 | 52 | 311.99 |
