▲Standard: DIN2632
▲Flange type: Welding Neck Flange
▲Size: DN10-DN3000
▲Pressure: PN10
▲Connection type: Ring type joint,Lap-joint face,Raised face,Flat face,Large male-female,Small male-female,Large tongue & groove,Small tongue & groove.
▲ Material:
1) Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31254/S31260/S32550/S32707
2) Carbon Steel Material:
ASTM A105, A350 LF2,P235GH,P250GH,SS400,Q235,C22.8,20#,16mn.
3) Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
ASTM A694 F42/F46/F52/F60/F65/F70/F80.
4) Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
5) Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
▲Surface treatment: CNC Machined&Finishing, Anti-rust oil,Transparent/Yellow/Black Anti-rust paint, Hot dipped/ Electric galvanized.
▲Usage:Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.

This product Keywords:DIN Flange DIN Steel Flange DIN Welding Neck Flange

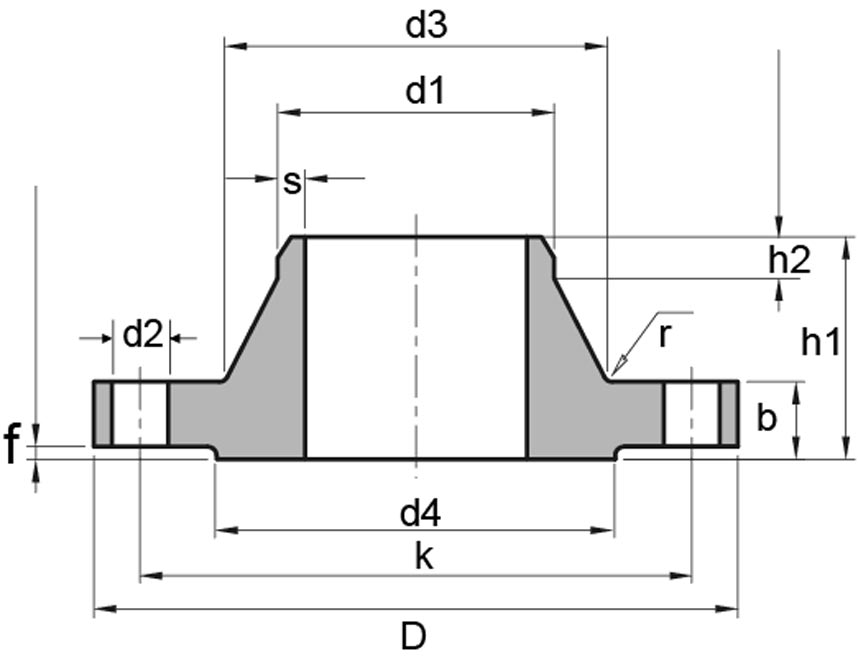

DIN 2632 PN10 Welding Neck Flange Dimensions in mm.

Pipe			Flange				Neck				Raised face		Screws			Weight
Rated	d1		D	b	k	strong	D3	S	r	strong	d4	f	No. of Holes	Thread	d2	(7.85 Kg/dm3)
DN	ISO	DIN	D	b	k	strong	D3	S	r	strong	d4	f	Each	Thread	d2	KG/PCS
10	-	14	90	14	60	35	25	1.8	4	6	40	2	4	M12	14	0.58
10	17.2	-	90	14	60	35	28	1.8	4	6	40	2	4	M12	14	0.58
15	-	20	95	14	65	35	30	2	4	6	45	2	4	M12	14	0.65
15	21.3	-	95	14	65	35	32	2	4	6	45	2	4	M12	14	0.65
20	-	25	105	16	75	38	38	2.3	4	6	58	2	4	M12	14	0.95
20	26.9	-	105	16	75	38	40	2.3	4	6	58	2	4	M12	14	0.95
25	-	30	115	16	85	38	42	2.6	4	6	68	2	4	M12	14	1.15
25	33.7	-	115	16	85	38	45	2.6	4	6	68	2	4	M12	14	1.14
32	-	38	140	16	100	40	52	2.6	6	6	78	2	4	M16	18	1.67
32	42.4	-	140	16	100	40	55	2.6	6	6	78	2	4	M16	18	1.65
40	-	44.5	150	16	110	42	60	2.6	6	7	88	3	4	M16	18	1.85
40	48.3	-	150	16	110	42	64	2.6	6	7	88	3	4	M16	18	1.83
50	-	57	165	18	125	45	72	2.9	6	8	102	3	4	M16	18	2.51
50	60.3	-	165	18	125	45	75	2.9	6	8	102	3	4	M16	18	2.48
65	76.1	-	165	18	145	45	90	2.9	6	10	122	3	4	M16	18	3.03
80	88.9	-	200	20	160	50	105	3.2	6	10	138	3	8	M16	18	3.82
100	-	108	220	20	180	52	125	3.6	8	12	158	3	8	M16	18	4.54
100	114.3	-	220	20	180	52	131	3.6	8	12	158	3	8	M16	18	4.41
125	-	133	250	22	210	55	150	4	8	12	188	3	8	M16	18	6.28
125	139.7	-	250	22	210	55	156	4	8	12	188	3	8	M16	18	6.07
150	-	159	285	22	240	55	175	4.5	10	12	212	3	8	M20	22	7.75
150	168.3	-	285	22	240	55	184	4.5	10	12	212	3	8	M20	22	7.40
200	219.1	-	340	24	295	62	235	5.9	10	16	268	3	8	M20	22	11.10
250	-	267	395	26	350	68	285	6.3	12	16	320	3	12	M20	22	15.31
250	273.0	-	395	26	350	68	292	6.3	12	16	320	3	12	M20	22	14.92
300	323.9	-	445	26	400	68	344	7.1	12	16	370	4	12	M20	22	17.47
350	355.6	-	505	26	460	66	385	7.1	12	16	430	4	16	M20	22	23.70
350	-	368	505	26	460	68	385	7.1	12	16	430	4	16	M20	22	21.71
400	406.4	-	565	26	515	72	440	7.1	12	16	482	4	16	M24	26	28.72
400	-	419	565	26	515	72	440	7.1	12	16	482	4	16	M24	26	26.27
450	457.2	-	615	26	565	72	478	7.1	12	16	532	4	20	M24	26	30.40
500	508.0	-	670	28	620	75	542	7.1	12	16	585	4	20	M24	26	38.27
600	610.0	-	780	28	725	80	642	7.1	12	18	685	5	20	M27	30	46.56
700	711.0	-	895	30	840	80	745	8	12	18	800	5	24	M27	30	62.30
800	813.0	-	1015	32	950	90	850	8	12	18	905	5	24	M30	33	83.81
900	914.0	-	1115	34	1050	95	950	10	12	20	1005	5	28	M30	33	102.45
1000	1016.0	-	1230	34	1160	95	1052	10	16	20	1110	5	28	M33	36	118.53
1200	1220.0	-	1455	36	1380	115	1255	11	16	25	1330	5	32	M36	39	178.18
1400	1420.0	-	1675	42	1590	120	1460	12	16	25	1535	5	36	M39	42	244.75
1600	1620.0	-	1915	46	1820	130	1665	14	16	25	1760	5	40	M45	48	353.74
1800	1820.0	-	2115	50	2020	140	1868	15	16	30	1960	5	44	M45	48	436.33
2000	2020.0	-	2325	54	2230	150	2072	16	16	30	2170	5	46	M45	48	548.04
2200	2220.0	-	2550	58	2440	160	2275	18	18	35	2370	5	52	M52	56	685.10
2400	2420.0	-	2760	62	2650	170	2478	20	18	35	2570	5	56	M52	56	640.04
2600	2620.0	-	2860	66	2850	180	2690	22	18	40	2780	6	60	M52	56	990.16
2800	2820.0	-	3070	70	3070	190	2882	22	18	40	3000	6	64	M52	56	1187.16
3000	3020.0	-	3290	75	3290	200	3085	24	18	45	3210	6	65	M56	62	1437.06
