Weldo Flange/Nipo Flange

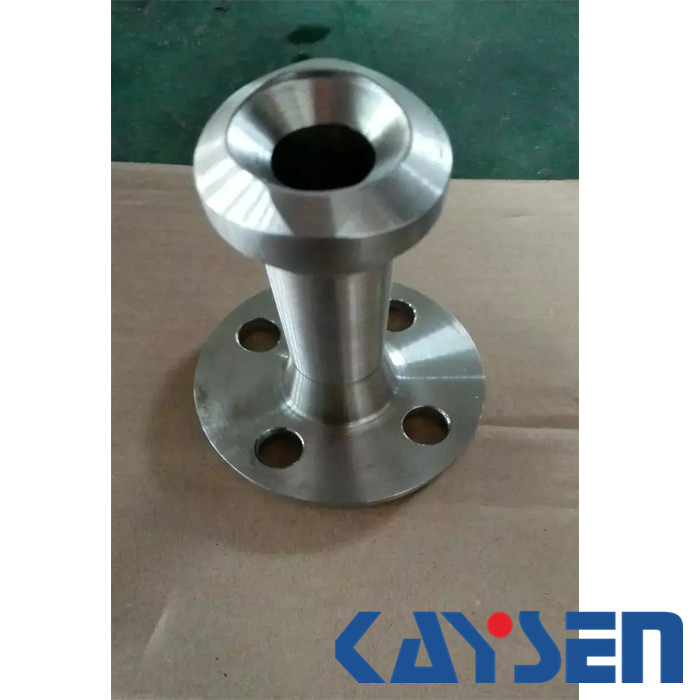

ANSI Weldo flanges class 1500
Standard: ANSI
Flange type: Stainless steel Weldo flange
Size range: 1/2
Pressure: 1500LB
Material: Stainless steel , Alloy Steel , Carbon Steel
ANSI Weldo flanges class 1500
Standard: ANSI
Flange type: Weldo flange
Size range: 1/2"-2"
Pressure: Class 1500
Process: forged weldo flange Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Stainless steel Weldo flange
Standard: ANSI
Flange type: Weldo flange
Size range: 1/2"-2"
Pressure class:Class 1500
Material : Stainless steel , Alloy Steel , Carbon Steel
Weldo Flange Dimensions:
| ANSI 1500# | ||||||
| Branch NB | Flange OD A | Overall length B | Flange thk D |
Weight Kg Approx |
||
| sch 10-40 | sch XS-80 | sch160-XXS | ||||
| 1/2"(15) | 121 | 85 | 85 | 95 | 28.7 | 2.5 |
| 3/4"(20) | 130 | 100 | 100 | 110 | 31.8 | 3 |
| 1"(25) | 149 | 105 | 105 | 120 | 34.8 | 4.5 |
| 1 1/2"(40) | 178 | 125 | 125 | 141 | 38.1 | 7 |
| 2"(50) | 216 | 145 | 145 | 165 | 44.5 | 12.5 |
