Weldo Flange/Nipo Flange

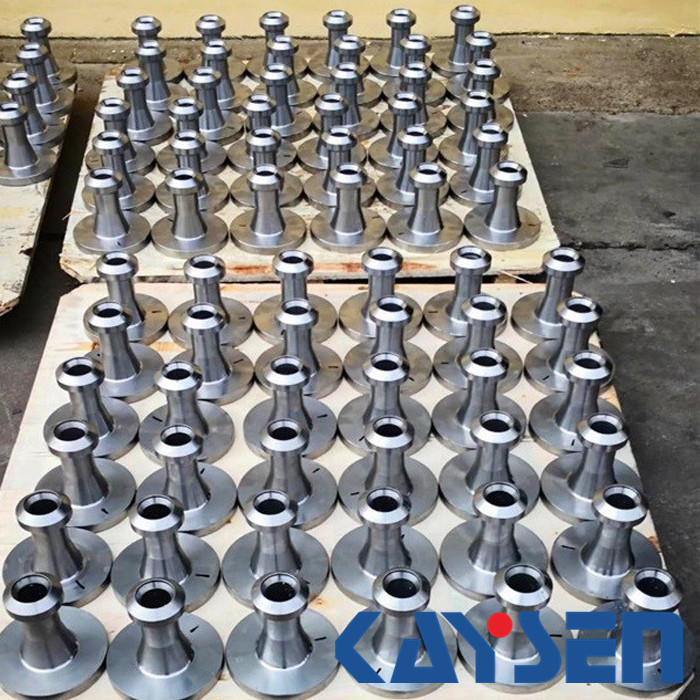

Stainless steel Forged ANSI Nipo flanges class 1500
Standard: ANSI
Flange type: Stainless steel Nipoflange
Size range: 1/2
Pressure: 1500LB
Material: Stainless steel , Alloy Steel , Carbon Steel
Standard: ANSI
Flange type: Nipoflange
Size range: 1/2"-2"
Pressure: Class 1500
Process: forged Nipoflange
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707 Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Stainless steel Nipoflange
Standard: ANSI
Flange type: Nipoflange
Size range: 1/2"-2"
Pressure class:Class 1500
Material : Stainless steel , Alloy Steel , Carbon Steel
Nipo Flange Dimensions:
| ANSI 1500# | ||||
| Branch NB | Flange OD A | Overrall length B | Flange thk D | Weight Kg Approx |
| 1/2"(15) | 121 | 155 | 28.7 | 2.5 |
| 3/4"(20) | 130 | 165 | 31.8 | 3 |
| 1"(25) | 149 | 170 | 34.8 | 4.5 |
| 1 1/2"(40) | 178 | 180 | 38.1 | 7.5 |
| 2"(50) | 216 | 200 | 44.5 | 13.5 |
