Weldo Flange/Nipo Flange

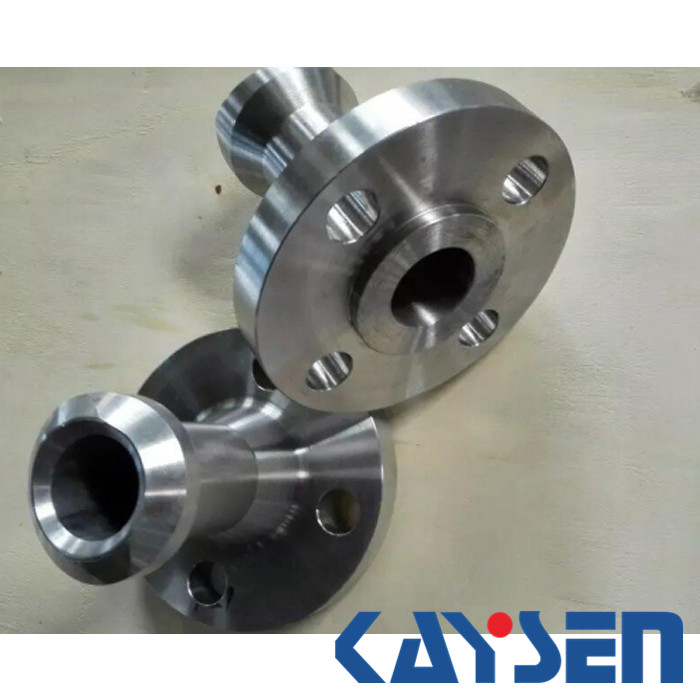

Stainless steel Nipoflange class 300
Standard: ANSI
Flange type: Stainless steel Nipoflange
Size range: 12
Pressure: 150-2500LB
Material: Stainless steel , Alloy Steel , Carbon Steel
Standard: ANSI
Flange type: Nipoflange
Size range: 1/2"-2"
Pressure: Class 300
Process: forged Nipoflange
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Stainless steel Nipoflange
Standard: ANSI
Flange type: Nipoflange
Size range: 1/2"-2"
Pressure class:Class 300
Material : Stainless steel , Alloy Steel , Carbon Steel
Nipo Flange Dimensions:
| ANSI 300# | ||||
| Branch NB | Flange OD A | Overrall length B | Flange thk D | Weight Kg Approx |
| 1/2"(15) | 96 | 140 | 14.3 | 1 |
| 3/4"(20) | 117 | 150 | 15.8 | 2 |
| 1"(25) | 124 | 150 | 17.5 | 2 |
| 1 1/2"(40) | 156 | 160 | 20.6 | 4.5 |
| 2"(50) | 165 | 160 | 22.4 | 6 |
